| Manufacturer |
IOGEAR, Inc |
| Manufacturer Part Number |
GCS78 |
| Manufacturer Website Address |
www.iogear.com |
| Product Line |
MiniView |
| Product Name |

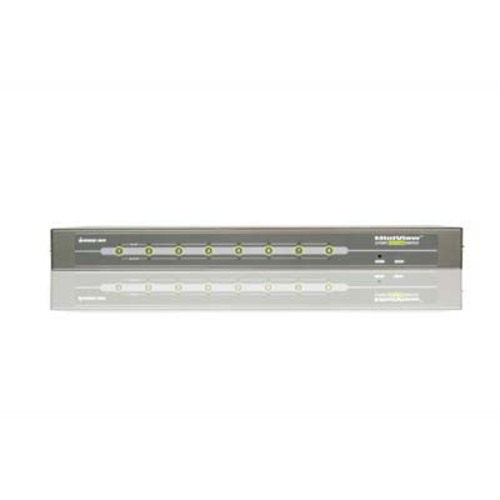

MiniView GCS78 8-Port KVM Switch |
| Marketing Information |
Your business is growing faster than you expected and
four computers simply aren't enough to meet your needs? Not a problem.
IOGEAR's new 8-port PS/2 KVM is just the tool you need to help reduce
the need for redundant hardware. Now you can control up to eight
computers with a single keyboard, monitor and mouse. Just think of the
time, space and money you'll save.
This 8-port KVM switch comes with built-in AutoScan mode
that lets you conveniently monitor every attached computer for a
specified amount of time, while our Hot Key technology allows you to
switch ports easily using the keyboard. With its 1U, 19 inch
rack-mountable casing and status-monitoring LEDs, the IOGEAR 8-port
PS/2 is the perfect switch for your home, small business or any other
multi-computer environment.
|
| Product Type |
KVM Switch |
|
| Number of Computers |
8 Computer(s) |
| Number of Users |
1 x Local User |
| Video Signal |
VGA |
| Graphics Resolution |
1920 x 1440Maximum |
| Scan Intervals |
5 Seconds
|
|
| User/Console Ports |
1 x 6-pin mini-DIN (PS/2 Style) Female Keyboard
1 x 6-pin mini-DIN (PS/2 Style) Female Mouse
1 x 15-pin D-Sub (HD-15) Female VGA
|
| Computer Ports |
8 x 6-pin mini-DIN (PS/2 Style) Female Keyboard
8 x 6-pin mini-DIN (PS/2 Style) Female Mouse
8 x 15-pin D-Sub (HD-15) Male VGA
|
|
| Input Voltage |
9 V DC |
| Input Current |
400mA |
| Power Consumption |
1.08 W Maximum |
|
| Form Factor |
1U 19" Rack-mountable |
| Dimensions |
1.75" Height x 17" Width x 6" Depth |
| Shipping Dimensions |
5.5" Height x 22" Width x 9.5" Depth |
| Weight |
7.8 lb |
| Shipping Weight |
8.4 lb |
|
| Package Contents |
1 x MiniView GCS78 8-Port KVM Switch
1 x Power adapter
1 x Rack mount kit
1 x Quick start guide
1 x Warranty/Registration card
|
| Additional Information |
Connected computers can be added or removed from the
setup without disturbing the other computers
Plug-n-Play monitor support
Easy to install - no software required
Easy to operate - use push button at the front and hot
keys to switch port
Built in AutoScan mode
LEDs allow for easy status monitoring
|
| System Requirement |
Computers with PS/2 connections, and HDDB15 VGA
connection
|
|
| Standard Warranty |
3 Year(s) Limited |
