Product Description:
| Marketing Description: The IOGEAR DVI KVMP Switch GCS1764 charts
a revolutionary new direction in KVM switch functionality by providing
an interface for today's digital monitors while integrating a 4-port
USB KVM switch with USB peripheral sharing capabilities. As a KVM
switch, the unit allows the user to access four computers from a single
USB keyboard, USB mouse, and monitor, and also share among the
computers peripherals such as external hard drives, printers and
scanners. The GCS1764's independent (asynchronous) switching feature
allows the KVM focus to be on one computer while the USB peripheral
focus is on another. The user can switch from one computer to another
without interrupting print jobs, downloads or other functions being
handled by connected peripherals. This eliminates the need to purchase
a separate USB hub as well as the need to purchase separate stand-alone
peripheral sharers - such as printer servers, modem splitters, etc. The
GCS1764 further improves on previous designs with DVI (Digital Video
Interface) connectors, and the transfer of keyboard and mouse data to
the computers via a fast, reliable USB connection. DVI supports both
digital input (flat panel displays, data projectors, plasma displays,
digital TVs and set-top boxes) and analog video input (traditional
monitors and TVs). |
| Product Description |

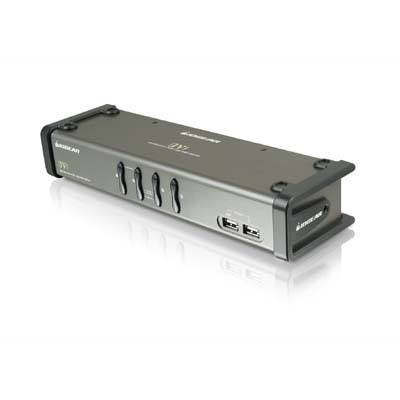

IOGear MiniView DVI KVMP Switch GCS1764 - KVM / audio
switch - 4 ports |
| Device Type |
KVM / audio switch |
| Form Factor |
External |
| Dimensions (WxDxH) |
10.2 in x 2.9 in x 1.7 in |
| Weight |
2.2 lbs |
| Ports Qty |
4 |
| KVM Users Qty |
1 local user |
| System Requirements |
Microsoft Windows 98, UNIX, Microsoft Windows 98 Second
Edition, Linux, Microsoft Windows 2000, Apple MacOS 8.6 or later,
Microsoft Windows Millennium Edition, Microsoft Windows XP |
| Manufacturer Warranty |
3 years warranty |
| General |
| Device Type |
KVM / audio switch |
| Enclosure Type |
External |
| Width |
10.2 in |
| Depth |
2.9 in |
| Height |
1.7 in |
| Weight |
2.2 lbs |
| Networking |
| Ports Qty |
4 |
| Connectivity Technology |
Wired |
| KVM |
| KVM Local Users Qty |
1 local user |
| Max Resolution |
1600 x 1200 |
| Expansion / Connectivity |
| Interfaces |
4 x audio - line-out - mini-phone stereo
3.5 mm
4 x microphone - input - mini-phone 3.5 mm
4 x display / video - DVI-Analog/Digital - 29 pin combined DVI
4 x keyboard / mouse - 4 pin USB Type B |
| Connections |
1 x keyboard - 4 pin USB Type A
1 x mouse - 4 pin USB Type A
1 x microphone - input - mini-phone 3.5 mm
1 x audio - line-out - mini-phone stereo 3.5 mm
1 x display / video - DVI-Analog/Digital - 29 pin combined DVI |
| Miscellaneous |
| Cables Included |
1 x data cable
4 x keyboard / mouse / video cable kit - 6 ft |
| Compliant Standards |
DDC-2B |
| Power |
| Power Device |
Power adapter - external |
| Software / System Requirements |
| OS Required |
Microsoft Windows 98, UNIX, Microsoft
Windows 98 Second Edition, Linux, Microsoft Windows 2000, Apple MacOS
8.6 or later, Microsoft Windows Millennium Edition, Microsoft Windows XP |
| Manufacturer Warranty |
| Service & Support |
3 years warranty |
| Service & Support Details |
Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
32 °F |
| Max Operating Temperature |
122 °F |
|
|
