| Manufacturer |
Antec Inc. |
| Manufacturer Part Number |
SP-400 |
| Manufacturer Website Address |
www.antec-inc.com/us |
| Product Line |
SmartPower II |
| Product Name |

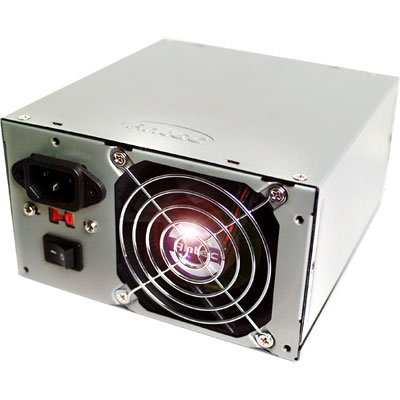

SmartPower II 400 Watt ATX12V Power Supply |
| Marketing Information |
ATX12V
v2.0 compliance allows SmartPower II 400W power supply to consume up to
25% less power than standard power supplies, saving your money on your
electric bill. Dual 12V output circuitry provides added system
stability. Flow-through dual 80mm fans (one intake and one exhaust).
This power supply has unique dual fans technology, means exhaust fan
starts to spin when the power supply reaches certain temperatures to
ensure proper airflow, the second fan spins on power up. Modular cable
design, use only the cables you need.
|
| Product Type |
ATX 12V |
|
| Efficiency |
minimum 70% |
| Fans |
Dual Fans |
| MTBF |
80000 Hour(s) 25 °C |
| Holdup Time |
17 ms Full-load |
|
| Input Voltage |
115V AC
230V AC
|
| Current |
10A @ 115V AC Input Current
5A @ 230V AC Input Current
0.5Ato 22A @ 3.3V DC Output Current
0.5Ato 21A @ 5V DC Output Current
1Ato 10A @ 12V DC Output Current
1Ato 15A @ 12V DC Output Current
0Ato 0.3A @ -12V DC Output Current
0Ato 2A @ 5V DC Standby Output Current
|
| Frequency |
47 Hz to 63 Hz |
| Output Power |
400 W Maximum |
| Over Voltage Protection |
6.5V DC vs. 5V DC
4.1V DC vs. 3.3V DC
14.4V DC vs. 12V DC
|
|
| Connectors |
24-pin Motherboard Adapter
20-pin ATX Power 12V Plug
3-pin TX3 Fan Sensor
4 x Serial ATA
|
|
| Temperature |
10 °C (50 °F) to 50 °C (122 °F)
Operating |
| Altitude |
10000 ft Operating |
|
| Dimensions |
3.4" Height x 5.5" Width x 5.9" Depth |
| Weight |
5 lb |
|
| Additional Information |
P. G. Signal: 100-500ms
Leakage Current: < 3.5mA @ 115VAC
Gold plated connector for superior conductivity
Switches:
ATX Logic on-off
Additional power rocker switch
Volt selector switch
|
| Certifications & Standards |
UL
CUL
TUV
CB
FCC Class B
CISPR22
CE
CCC
|
