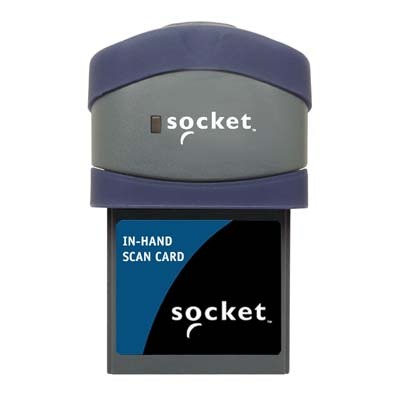

MODEL- IS5024-608         VENDOR- SOCKET COMMUNICATIONS INC.

FEATURES- CF Scan Card 5E- Single
       The CFSC 5E is an Entry Level scanning solution combining
        CompactFlash and an advanced miniature Linear CMOS technology. The
        CFSC 5E automatically decodes most popular symbologies using an LED
        light source which poses no safety or health hazards.
       The CompactFlash Scan Card (CFSC) 5E is a Series 5 Entry Level
        scanner that adds affordable bar code scanning to your Pocket PC or
        Palm device. Based on miniature Linear CMOS Imaging technology from
        Symbol Technologies, the CFSC 5E scans all popular linear bar code
        symbologies and uses approximately 57mA of power during scanning to
        maximize battery life. SocketScan keyboard emulation software sends
        decoded data to any Windows or Palm application as virtual
        keystrokes.
* Integrated Type II CF card and scanner plugs into the Type I or Type II
  CompactFlash slot of Windows Powered Pocket PCs. Combine with CF-to-PC
  card adapter (Part #4001-515, sold separately) to use in pen tablets or
  laptops Supported in Palm and SmartPhone devices running Palm OS.
* Automatically decodes the most popular bar code symbologies including
  UPC/EAN, Code 39, Code 128, Interleaved 2 of 5, MSI/Plessey, and Codabar.
  Other symbologies can be enabled by user with SocketScan Symbology
  selector.
* Class 1 LED light source poses no safety or health hazards
* Sockets SocketScan software for Windows and Palm converts scanned bar
  code characters into virtual keystrokes so that any Windows or Palm
  application treats the characters as though they were typed on a
  keyboard.
* SocketScan enables the creation of prefixes and suffixes, such as Tab or
  Carriage Return, to further eliminate keystrokes in the data collection
  process.
* SocketScan SDK for both Windows CE and Palm is available for developers
  who wish to control the scanner and resulting data from within their
  application.
* This Battery Friendly solution draws only a few milliamps of current in
  standby mode, extending the battery life of your hand-held mobile device.
* No extra batteries or special power adapter required. The CFSC 5E gets
  power from the host hand-held mobile device.
* Works with Windows or Palm-based development tools so you can easily
  create custom applications.

  -- SPECIFICATIONs ---------------------------------
INTERFACE    - CompactFlash (CF) Type II
               PC Card (PCMCIA) with Type II (CF-to-PC Card adapter,
                 available separately: Product # AC4001-515).
BAR CODE SYMBOLOGIES DECODED-
               Code 39, UPC/EAN/JAN, MSI, Code 128, Code 93, Codabar,
                 Interleaved 2 of 5, Discrete 2 of 5, Code 11.
O/S SUPPORT  - Windows Mobile for Pocket PC 2000/2002/2003 and HPC 2000
               Windows XP
COMPATIBILITY- Windows COM Port
DECODE DISTANCES-
               1.5 to 24+ inches (depending on symbol size, symbology,
                 label media, W-N Ratio, and scan angle).
SOFTWARE     - Includes Installation Utility, SocketScan with keyboard
                 emulation for Windows Mobile, XP; Socket Floating Trigger
                 for Windows Mobile.
               SocketScan software has the following features:
                - Reads bar code data into any Windows application as if
                  manually typed.
                - Lets you add Prefixes and/or Suffixes (e.g., Carriage
                  Return) to further reduce manual keystrokes.
                - Lets you assign a beep tone or .WAV file to signify a
                  good scan.
                - Lets you easily enable/disable any of 18 common
                  symbologies.
                - Scan Demo reports symbology, length and decoded data (in
                  ASCII or Hex) of any scanned bar code (for 18 supported
                  symbologies).
                - SDK available for developers
APPROVALS    - FCC B, EN55024:1998, C-TICK, CompactFlash spec 2.0
POWER- (with 3.3V adapter) 4mA (Idle), 40 mA max (Scanning)
SIZE - CF Card  : 43 x 43 x 5 mm              WT.- approx. 28 grams
       Head Size: 83 x 51 x 20 mm
   www.socketcom.com
