MODEL- USR5417            VENDOR- US ROBOTICS

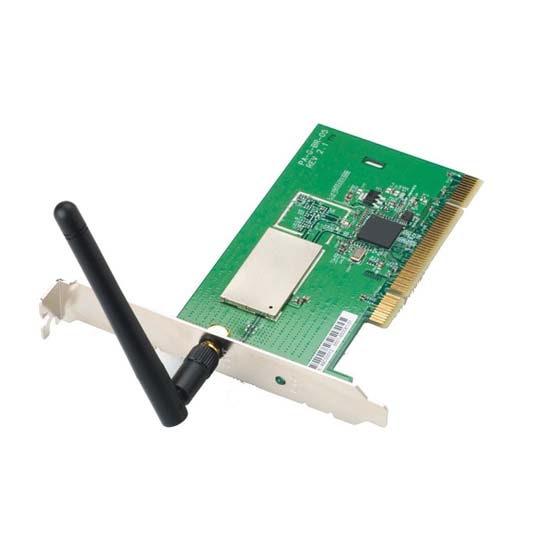

FEATURES- 5417 Wireless MAXg PCI Adapter
       The U.S. Robotics Wireless MAXg PCI Adapter provides high
        performance and secure wireless connectivity for desktop computers.
        Featuring exclusive MAXg Technology, the PCI adapter provides 50%
        greater range than standard 802.11g -- to maintain solid
        connections throughout your home or small business while providing
        a MAXimum performance of 125 Mbps.
    Includes Wireless MAXg PCI Card, Quick Installation Guide, Installation
      CD-ROM with User Manual.
* MAXg Technology
   - MAXimum Range -- 50% greater than standard 802.11g
   - MAXimum Speed -- 125 Mbps performance
   - MAXimum Security -- industry leading security protects your network
     from hackers and unauthorized access from the Internet and from
     wireless interlopers.
* Complete Suite of Security Measures
   - Wi-Fi Protected Access (WPA) and WPA2/802.11i
   - 802.1x Authentication
   - 64/128-bit WEP encryption
* MAXimum simplicity
   In one seamless operation the SureStart installation wizard helps you
   easily install the PC Card, and if appropriate your U.S. Robotics MAXg
   Router, validates your wireless connection and makes your security set
   up nearly effortless.
* Power Efficient
   Designed for low power consumption, extending the life of your battery.
* Excellent Compatibility
   Complete compatibility with standard 802.11b, 802.11g and accelerated
   wireless technologies wireless networking.

  -- SPECIFICATIONs ------------------------------------
INTERFACE/BUS- 32-bit PCI
GENERAL      - MAXg Technology for up to 125 Mbps performance
               SureStart installation wizard
               Support for Universal Plug and Play (UPnP)
SECURITY     - Wi-Fi Protected Access (WPA), TKIP
               64/128-bit Wired Equivalent Privacy (WEP) encryption
               802.1x authentication
               802.11i (WPA2)
ANTENNA      - 2 dBi swivel dipole removable antenna with reverse polarity
                 SMA connector.
FREQUENCY    - 2400 ~ 2462 MHz for North America
               2400 ~ 2483.5 MHz for ETSI
               2454 ~ 2483.5 MHz for France
RF OUTPUT POWER-
               Outdoor 10mW
               19.25 dBm EIRP Average
CHANNELS     - 11 channels for North America
               13 channels for ETSI
APPROVALS    - EMI - FCC Class B
               Safety - UL, CUL
               EMI & Safety - CE Class B
REQUIREMENTS - PC with Pentium processor or equivalent, 100 MHz or higher
               64 MB RAM (or greater as recommended by your operating
                 system).
               Available PCI 2.2 Slot
               Windows 9898SE/Me/2000/XP
SIZE - 5.23" x 4.76" x 0.86"                WT.- 0.2 lb.
      www.usr.com
