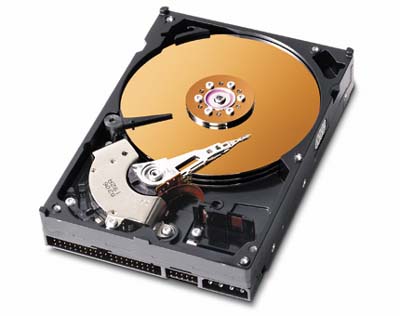

MODEL- WD3200JBRTL        VENDOR- WESTERN DIGITAL

FEATURES- Special Edition Caviar 7200 Hard Drive- 320.0 GB Retail Kit
       Cool-running, quiet operation, superior performance and industry-
        leading reliability make these next-generation WD Caviar SE drives
        the perfect hard drives for desktop and enterprise storage.
       WD, the first to introduce an 8 MB buffer, has advanced the caching
        algorithms of this new and improved Caviar family of hard drives,
        resulting in next-generation high performance -- performance that
        matches the speed of most 16 MB cache drives.
       Heat is a major contributor to hard drive wear, and cool drive
        operating temperatures help increase long-term drive reliability.
        WD achieves the lowest operating temperature of any hard drive in
        its class, including slower drives spinning at 5,400 RPM, by
        lowering the drives' power consumption through advanced design of
        electronics and firmware.
       Todays PCs, digital video recorders and gaming machines are
        increasingly operated in environments where noise is less
        tolerated. WD minimizes WD Caviar noise to levels virtually below
        the threshold of human hearing with its WhisperDrive technology,
        which features a highly efficient power driver design. And to cut
        seek noise, Soft Seek technology streamlines read/write seeking
        algorithms, resulting in the drive operating more efficiently when
        accessing and writing data.
* Data Lifeguard is an expanded set of data protection features that
  include shock protection, an environmental protection system, and
  embedded error detection and repair features that automatically find,
  isolate, and repair problem areas that may develop over the extended use
  of the hard drive. With these enhanced data reliability features, the
  drive can perform more accurate monitoring and error repair and deliver
  exceptional data security.
* Data Lifeguard Tools is a set of software utilities that work in
  conjunction with the embedded Data Lifeguard features to make hard drive
  installation, drive management diagnostics, and repair simple and worry-
  free.
* Shock Guard provides outstanding improvements in shock and vibration
  protection for WD Caviar SE drives. Shock Guard allows instantaneous data
  protection at high shock values to achieve leading shock specifications.

  -- SPECIFICATIONs ------------------------------------
INTERFACE/BUS- Ultra ATA/100 (40-pin, 80 conductor cable)
PERFORMANCE  - Rotational Speed  : 7,200 RPM (nominal)
               Buffer Size       : 8 MB
               Average Latency   : 4.20 ms (nominal)
               Contact Start/
                    Stop Cycles  : 50,000 minimum
               Read Seek Time    :  8.9 ms (average)
               Write Seek Time   : 10.9 ms (average)
               Track-To-Track
                      Seek Time  :  2.0 ms (average)
               Full Stroke Seek  : 21.0 ms (average)
TRANSFER RATE- Buffer To Disk    : 748 Mbits/s (Max)
               Buffer to Host
                 (Serial ATA)    : 150 Mbits/s (Max)
CONFIGURATION- Cylinders         : 16,383
               Number of Heads   : 16 (Logical)
               Number of Heads   :  6 (Physical)
               Sectors Per Track : 63
               Formatted Capacity: 320,072 MB
               Capacity          : 320 GB
               Actuator Type     : Rotary Voice Coil
               Number of Platters: 3
               Bytes Per Sector  : 512
               User Sectors
                        Per Drive: 488,397,168
               Servo Type        : Embedded
SIZE - 4.0"w x 1.028"h x 5.787"d                WT.- 1.60 lbs.
