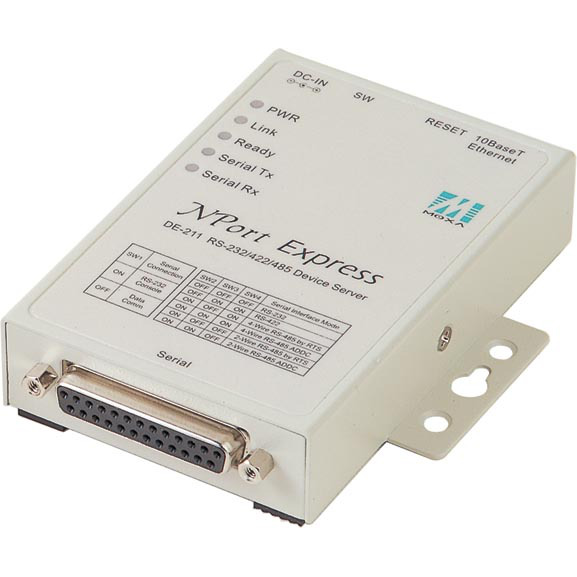

NPort Express DE-211 is a universal serial device server that
can
network-enable your industrial serial devices, such as information
display boards, PLCs, flow meters, gas meters, CNC machines, and
biometric identification card readers.
Seamless integration with your industrial serial
devices and Ethernet TCP/IP network
DE-211
supports RS-232/422 and 4-wire/2-wire RS-485, and has a built-in
terminator, making it fit for all types of industrial serial devices
and serial communications topologies. The optional Power over Serial
function allows DE-211 to be powered by DC power pins inside the DB25
serial cable that connects to the serial device, allowing DE-211 to be
seamlessly integrated with connected serial devices.
Total software solution for serial-to-Ethernet
applications
With
the help of Windows Native COM driver technology, you can keep running
existing COM-based software, such as HyperTerminal, without changing
your software under Windows and Linux operating systems. In addition,
DE-211 provides versatile Raw Connection Modes for sockets, such as TCP
Server, TCP Client, UDP Server/Client, Pair Connection, and Ethernet
Modem, making DE-211 a powerful and flexible tool for completing your
important projects.
Easy installation and configuration with NPort
Configurator
DE-211
NPort Management Suite provides easy IP configuration,
including DHCP,
MAC-IP mapping, and comes with enhanced easy configuration management
and fast deployment capabilities. Friendly Graphical User Interface
management utilities for Windows and user-configurable command mode are
both supplied.
Benefits
| Network-enable your industrial
serial devices instantly
Easy IP setup and deployment for mass installation
Easy configuration management for local site and remote
management
Easy integration with industrial serial devices, with
versatile software, power, and housing solution
Easy troubleshooting with monitoring software and LED
signals for data communication
Applications
Information display board management for hotels and
airports
PLC control and administration
Industrial SCADA, measurement, and monitoring systems
CNC machine management
Medical/Hospital/Healthcare industry
Factory Automation
Building Automation
Security/Entrance control systems
Time/Attendance control systems
and more...
|
|
Features
|
- 3-in-1 RS-232/422/485 interface and 10 Mbps Ethernet
- Supports 4- and 2-wire RS-485 with patented ADDC™ and
built-in terminator
- Supports industrial 24 VDC power input and optional Power
over Serial
- Terminal block accessories for easy RS-422/485 serial wiring
- Supports IP configuration by MAC address
- Supports configuration store and copy for easy deployment
- Supports Windows Native COM driver and Linux real TTY driver
- Supports Driver, TCP Server/Client, UDP Server/Client,
Ethernet Modem, and Pair Connection operation modes
|
| Specifications |
 Hardware |
|
|
|
| Interface |
|
|
|
|
|
|
| RS-232/422/485 (DIP switch selectable) |
|
|
|
|
|
|
|
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
4-wire RS-485: Tx+, Tx-, Rx+, Rx-, GND
2-wire RS-485: Data+, Data-, GND |
|
|
|
|
| Performance |
|
|
|
| Configuration |
|
|
|
| None, even, odd, space, mark |
|
|
|
|
|
|
|
|
|
|
|
|
|
| Operating
Systems |
|
|
|
| Windows 2000/XP/2003, Windows NT, Windows95/98/ME Native
COM driver, Linux real tty driver |
|
|
|
|
| Protocols |
|
|
|
| TCP, IP, UDP, Telnet, RTelnet, DHCP, ICMP |
|
|
|
|
| Operation
Modes |
|
|
|
| Driver Mode, TCP Server, TCP Client, UDP Server/Client,
Ethernet Modem, Pair Connection |
|
|
|
|
| Management |
|
|
|
Serial console
Telnet console
NPort Management Suite for Windows
Linux Batch Configurator
NPort Manager for COM driver Monitor
Firmware upgrade for Windows
NPort Admin for Linux tty driver |
|
|
|
|
| Power
and Environment |
|
|
|
DC 12V to 30V
150 mA (max.) at 12V
92 mA (max.) at 24V
260 mA (max.) at 5V (Power over Serial enabled) |
|
|
|
|
|
|
|
|
|
|
|
|
|
67 x 100.4 x 22 mm (without ears)
90 x 100.4 x 22 mm (including ears) |
|
|
|
|
| 15 KV ESD (RS-232), 16 KV ESD (RS-422/485) |
|
|
|
|
|
|
|
| FCC B, CE B, UL, CUL, TÜV |
|
|
|
|
|
Ordering Information
|
|
|
| 1 port
RS-232/422/485 universal serial device server |
|
|
|
| 1 port
RS-232/422/485 universal serial device server |
|
|
|
| NPort
Documentation and Software CD-ROM
Power Adaptor
Quick Installation Guide
|
|
|
| Optional
Accessories |
|
|
| Male DB25 to
female DB9 RS-232 cable; 30 cm |
|
|
|
| Male DB25 to
male DB9 RS-232 cable; 30 cm |
|
|
|
| DB25 terminal
block kit for RS-422/485 |
|
|
|
| 35 mm DIN-Rail
Kit with 4 screws |
|
|
|
| Male DB25
DIN-Rail Wiring Terminal |
|
|
|
