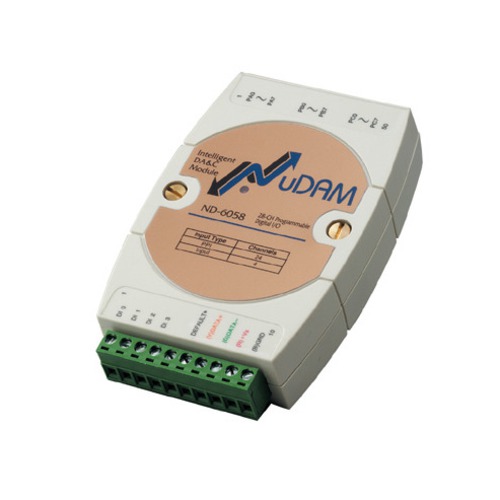

ADLINK Technology 24-CH Digital I/O Module

Manufacturer ADLINK Technology Mfg. Part # ND-6058 ITEM# 326707 Unit Price $172.45 (~CAD$214.96) Availability Back Order [ Get notified when product becomes available. ] Buy

Shipping and Handling: Singular Select... Regular [6-9 Business Days] -- $52.7[CAD$65.7] Priority [4-6 Business Days] -- $94.2[CAD$117.43] Extreme [2-4 Business Days] -- $140[CAD$174.51]  INTERNATIONAL GROUND SHIPPING: For qualified orders, we will waive the Brokerage/Handling Fee for Custom Clearance and Documentation No other hidden fees will be collected from you when packages arrive. Guaranteed [ Detailed Explanation ]

[ View Detail Product Info ]

Product Description: 28-CH PPI Module 8255 PPI mode 0 emulation Channels: 24 DIO and 4 DI Programmable I/O 8255 programmable peripheral interface mode 0 emulation Channel: 24 Input Signal: Logical level 0: -0.5 V to +0.8 V Logical level 1: +2.0 V to +5.5 V Internal Pull-Up Resistor: 10 k? Maximum Current: 0.5 mA Output Signal Logical level 0: +0.5 V max. Logical level 1: +2.4 V min. Digital Input Channels: 4 Logical Level 0: 2 V max. Logical Level 1: +3 V to +5.25 V Power Requirement: unregulated +10 V to +30 VDC Power Consumption:1.488 W typical Connector 50-pin female SCSI II
