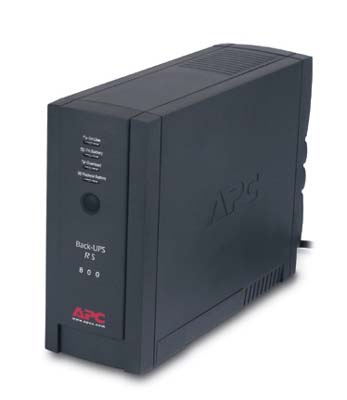

MODEL- BR800BLK           VENDOR- AMERICAN POWER CONVERSION

FEATURES- Back-UPS RS 800VA- Black color
       High Performance Power Protection for Business Computers.
       APC Back-UPS RS, 800VA/540W, Input 120V/Output 115V, Interface Port
        USB.
       The Back-UPS RS features advanced protection for business
        workstations and high-end desktops. Automatic Voltage Regulation
        (AVR) Technology keeps the utility voltage within safe levels
        without using the battery thereby extending battery life and
        maximizing runtime. Built-in data line protection prevents damage
        due to surges traveling over data lines. File-saving, auto-shutdown
        software with sophisticated power management is included. The Back-
        UPS RS is the ideal choice for applications requiring extended
        battery runtime.
       Audible Alarms, Automatic Self Test, Automatic Shutdown, Automatic
        Voltage Regulation (AVR), Building wiring fault indicator, Cold-
        start, Easy Overload Recovery, Hot Swap Batteries, Intelligent
        Battery Management, Internet FAX - modem - DSL surge protection,
        Lightning and Surge Protection, Overload Indicator, PC and Mac
        Compatible, Replace Batt Indicator, Resettable circuit breaker,
        Status Indicator LED's, Transformer Block Spacing, Unattended Safe
        & Graceful Shutdown, USB Connectivity, User Replaceable batteries.
  Includes Back-UPS RS unit, CD with software, Cord Management Straps, Free
    trial of anti-virus (firewall, email privacy, system recovery and
    online backup software), USB cable, User Manual.
* Unattended Safe & Graceful Shutdown
   Prevents possible data corruption by performing graceful, unattended
   operating system shutdown in the event of an extended power outage.
* Internet FAX - modem - DSL surge protection
   Provides protection from surges and spikes traveling on the phone line.
* Lightning and Surge Protection
   To prevent damage to your equipment from power surges and spikes.
* Software
   Use APCs software and accessories to prevent possible data corruption
   by performing graceful, unattended operating system shutdown and file
   saving in the event of an extended power outage. Customer can also
   quickly pinpoint power problems by tracking power data such as min/max
   utility voltage, line frequency and load capacity.
* Resettable circuit breaker
   Easy recovery from overloads; no need to replace a fuse.
* Auto Diagnostic Testing
   Biweekly testing of all internal components, including the battery,
   ensures your unit is ready when you need it.
* Intelligent Battery Management
   Actively increases battery life and system reliability using FastCharge
   technology, automatic battery and circuitry self-tests, and advanced
   diagnostics.
* Audible Alarms
   Proactively notifies you of changing UPS and utility power conditions.
* User Replaceable batteries
   With normal use, a UPS battery will last three to six years. APC s
   renewable UPS system eliminates the need for factory service and loss of
   protection by letting you replace batteries for a fraction of the cost
   of a new UPS.
* Easy Overload Recovery
   Push-button circuit breaker instead of a standard fuse, eliminates the
   need to return the unit to the factory for service.
* Status Indicator LED's
   Proactively notifies you of changing UPS and utility power conditions.
* Faster Recharge Time
   Battery can be recharged to at least 90% capacity within 2-4 hours so
   the unit can be prepared for the next outage.
* Cold-start
   You can power on the unit without any input power. This provides
   temporary emergency battery power when the utility power is out.
* User Replaceable batteries
   Save time and money by swapping the battery yourself. There is no need
   to send the unit to a factory service center.
* Hot Swap Batteries
   You can change the battery without powering down your equipment.
* Replace Battery Indicator
   Proactively warns the user that the battery needs to be charged or
   replaced soon.
* Overload Indicator
   Offers proactive notification that the UPS has too much equipment
   connected to it for its rated load.
* $150,000 Lifetime Connected Equipment Protection

  -- SPECIFICATIONs -----------------------------------
OUTPUT       - Power Capacity  : 800 VA
                                 540 Watts
               Nominal Voltage : 120 V
               Connections     : (4) NEMA 5-15R (battery backup)
                                 (3) NEMA 5-15R (surge protection)
INPUT        - Nominal Voltage : 120 V
               Input frequency : 47~63 Hz
               Connection Type : NEMA 5-15P
               Cord Length     : 6 feet
               Voltage Range   : 88~139 V
                                 78~152 V (adjustable)
BATTERIES & RUNTIME-
               Battery Type    : Maintenance-free sealed Lead-Acid battery
                                   with suspended electrolyte, leakproof.
                                 Replacement battery is (1) RBC32
               Backup Time     : 17.6 minutes (270 Watts) at half-load
                                  5.3 minutes (540 Watts) at full-load
COMMUNICATIONS & MANAGEMENT-
               Interface port  : USB
               Control panel   : LED status display with On Line, On
                                   Battery, Replace Battery and Overload
                                   indicators.
               Audible alarm   : Alarm when on battery, distinctive low
                                   battery alarm, configurable delays.
SURGE PROTECTION & FILTERING-
               Surge energy
                         rating: 320 joules
               Filtering       : Full time multi-pole noise filtering, 5%
                                   IEEE surge let-through, zero clamping
                                   response time, meets UL 1449.
               Dataline
                     protection: RJ-11 Modem/Fax/DSL protection (two wire
                                   single line).
                                 RJ-45 10/100BaseT Ethernet protection
APPROVALS    - CSA, FCC Part 15 Class B, FCC Part 68, UL 1449, UL 1778,
                 UL Listed.
SIZE - 4.00"w x 9.0"h x 13.0"d              WT.- 21.0 lbs.
  www.apcc.com
