| Manufacturer |
D-Link Systems, Inc. |
| Manufacturer Part Number |
DVG-1402S/L |
| Manufacturer Website Address |
www.dlink.com |
| Product Line |
Express EtherNetwork |
| Product Name |

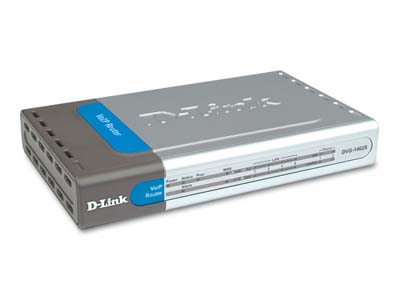

Express EtherNetwork Broadband Phone Service VoIP
Router |
| Marketing Information |
D-Link
introduces the DVG-1402S/L Broadband Phone Service VoIP Router. The
DVG-1402S/L is designed for businesses or homes that want to take
advantage of Internet connectivity and Voice Over IP using a single
gateway.
The DVG-1402S/L enables standard phones to be used
for voice calls over the Internet. Telephone calls made over the
Internet (VoIP) maximizes your broadband investment and is a
cost-effective way to make phone calls. Enjoy low-cost long-distance
calling with the DVG-1402S/L.
|
| Product Type |
VoIP Router |
|
| Interfaces/Ports |
1 x 10/100Base-TX WAN
4 x 10/100Base-TX LAN
2 x FXS
|
| Interfaces/Ports Details |
1 x RJ-45 10/100Base-TX Auto MDI/MDI-X WAN
4 x RJ-45 10/100Base-TX Auto MDI/MDI-X LAN
2 x RJ-11 FXS
1 x Console Management
|
|
| Connectivity Media |
Twisted Pair 10/100Base-TX |
| Data Transfer Rate |
10Mbps Ethernet
100Mbps Fast Ethernet
|
|
| Management |
Manage functions through an intuitive
Web-based graphical user interface
|
| Protocols |
TCP/IP
DHCP
NAT
PPPoE
SIP
|
| Security |
Administrative password through Web and
Console
GUI and advanced features are password protected
|
|
| Status Indicators |
General:
Power
Status/Alarm
Ethernet:
WAN: 10/100Mbps, Link/Act
LAN: 10/100Mbps, Link/Act
Phone 1 to 2:
MWI
Hook/Ringing
|
|
| Input Voltage |
12 V DC |
| Input Current |
1.2A |
|
| Temperature |
0 °C (32 °F) to 50 °C (122
°F) Operating
-10 °C (14 °F) to 55 °C (131 °F) Storage
|
| Humidity |
5% to 95% Non-condensing |
|
| Dimensions |
1.22" Height x 7.58" Width x 4.66" Depth |
|
| Additional Information |
AC-to-DC power adapter (provided)
Analog Voice Ports:
DTMF tone detection/generation
V.21/V.25 Modem/Fax tone detection
Echo Cancellation: G.168
Voice Compression:
G.711 (A-law and u-law)
G.723.1
G.726
G.729a
Quality of Service:
Voice service is prioritized over the data traffic (When unit
is connected directly to the modem)
|
| Certifications & Standards |
V.21/V.25 Modem/Fax tone detection
Echo Cancellation: G.168
Call Control Protocols Compliance:
SIP2 (RFC3261)
SIP1 (RFC2543)
Voice Compression:
G.711 (A-law and u-law)
G.723.1
G.726
G.729a
IEEE:
IEEE 802.3: 10BASE-T
IEEE 802.3u: 100BASE-TX
Emission (EMI):
FCC Class B
CE Class B
Safety:
UL/CUL
|
|
| Standard Warranty |
1 Year(s) |
