MODEL- JJP-29012          VENDOR- SIIG, INC

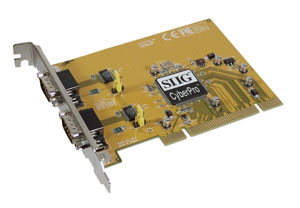

FEATURES- CyberSerial Dual 950
       Dual serial (16950) ports, Universal PCI card design with built-in
        128-byte FIFO buffers to work in 32-/64-bit, 3.3V/5V PCI and PCI-X
        slots.
       Supports 32-/64-bit, 3.3V/5V PCI and PCI-X slots.
       Two high-speed 16950 UART serial ports (9-pin) support data rate up
        to 920 Kbps.
       Will work as standard RS232 port or with 5V or 12V power output for
        devices that require power (such as handheld scanners, table
        scanners, POS displays, etc.).
    Includes Dual 950 card, Driver CD and Installation guide.
* IRQ sharing reduces IRQ conflicts.
* Built-in 128-byte FIFO buffers dramatically increase data transmit/
  receive speed, especially under Windows multitasking environment.
* 4-layer PCB board: separate layers for data & grounding. Greatly reduces
  signal noise & loss. Delivers more reliable high-speed data transfers.
* Enhanced bracket design to prevent bending. Connected to PCB with
  washered screws for a more secure connection.
* Supports 3.3V operation with 5V tolerance
* Conforms to PCI v2.2 universal card standard. PCI-X & 64-bit compatible
* Supports PME # (Power Management Event). Allows device to request a
  change in system power state (wake up system).
* Use SMT (Surface Mount Technology) type electrolytic capacitor. Low ESR
  (Equivalent Series Resistance) aluminum electrolytic capacitor. Offers
  much improved noise suppression & achieves higher levels of performance/
  reliability.
* Use SMT (Surface Mount Technology) type crystal. Offers cleaner design
  than traditional DIP-type crystal. Provides greatly improved grounding,
  which reduces EMI emission & improves performance/reliability.

  -- SPECIFICATIONs -----------------------------------
INTERFACE/BUS- 32/64-bit 3.3V/5V PCI and PCI-X
CONNECTORS   - (2) 9-pin Serial (16950 UART) ports
REQUIREMENTS - Pentium or equivalent computer
               available 32-/64-bit PCI or PCI-X slot
               Windows 95 or later
APPROVALS    - FCC B, CE
