MODEL- 1045               VENDOR- HAUPPAUGE COMPUTER WORKS

FEATURES- WinTV-PVR-150 Personal Video Recorder
       Watch, pause and record TV shows with instant replay on your PC.
        Burn your favorite TV shows or home videos onto DVD or CD.
       Watch TV on your PC screen (in a window or full screen), digitally
        record your TV shows, or pause live TV and create your own instant
        replay.
       The WinTV-PVR-150 turns your PC into a digital video recorder.
        Record TV program or home videos to disk, play them back to your PC
        screen or burn them onto DVD. With data rates from 4.4MBits/sec up
        to 12Mbits/sec (or as low as 1 Mbit/sec with VCD formats), you
        decide how much hard disk space your videos will consume. At DVD
        quality, a typical one hour TV show will take 2 gigabytes of hard
        disk space.
       WinTV-PVR includes WinTV-Scheduler and WinTV-Editor. Trim your
        videos, cut out segments, put them back together, all without
        losing any video quality with our WinTV-Editor! With WinTV-
        Scheduler, you can control your TV recording on a daily, weekly or
        random schedule. Automatically record your favorite programs so
        you will never miss your TV shows again!
       WinTV-PVRs pause feature gives you control of what you watch in your
        WinTV window. Get personal "instant replay" to stop the action when
        you want to analyze a key scene. Instantly rewind and replay the
        action again. You are in control with WinTV-PVR!
       Ever been called to the phone, had to answer the door, or went for a
        snack and missed part of the big match? With WinTV-PVR, you will
        never miss the action again. Just click on WinTV-PVR's "One Touch
        Pause" button to pause your TV program, click again to continue
        watching where you left off. Then fast forward to catch up to the
        live broadcast.
       Record your TV programs or home videos onto DVD or CD, and play them
        on your DVD player! If you have a DVD burner in your PC, use the
        WinTV-PVRs MPEG files with the included Ulead DVD MovieFactory to
        author your own home DVDs. Turn your TV shows or home videos into
        DVD movies!
       WinTV-PVR-150 contains a high quality 10-bit video digitizer with 4
        line adaptive comb filter to reduce video noise, plus a highly
        integrated MPEG-1/2 hardware encoder. WinTV-PVR-150 can record full
        screen TV or video at data rates from 2.5 to 12 Mbits/sec from TV,
        VCR or camcorder. The encoded MPEG-2 video is sent over the PCI
        bus, where it is stored on the PCs hard disk. The video can also be
        played back to the PC screen while recording.

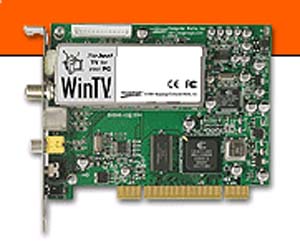

    Includes WinTV-PVR-150 PCI bus card with 125 channel cable-ready TV
      tuner, hardware MPEG-2 encoder, dbx-TV stereo, S-Video/composite plus
      audio inputs, Infra-red remote control transmitter and receiver,
      WinTV CD-ROM includes.
* WinTV-PVR-150 has these great features:
   - Watch TV on your PC screen using a 125 channel cable ready TV tuner.
     Surf the net while you watch TV on your PC screen!
   - Record your TV shows to disk using the built-in hardware MPEG-2
     encoder. Uses from 1-2 Gigabytes per hour of recorded video. While
     recording, the WinTV-PVRs' hardware MPEG encoder does all the work so
     your PC continues to run at full speed!
   - Pause your live TV shows with instant replay, fast forward and rewind.
   - Composite/S-Video and audio inputs, to connect to VCR or camcorders.
     Turn your home video tapes into MPEG movies, then burn them onto CD or
     DVD!
   - dbx-TV stereo decoder, for great TV sound.
   - WinTV-Scheduler, so you can schedule your TV recordings on a daily,
     weekly or once only schedule. With link to TitanTV.com, the on-line
     electronic program guide.
   - WinTV-Editor, so you can cut and trim your videos without losing video
     quality!
   - Ulead DVD MovieFactory 3 to author and burn DVDs, Video CDs or
     S-VCDs. Play them on your home DVD player!

  -- SPECIFICATIONs -----------------------------------
INTERFACE/BUS- 32-bit PCI
MPEG RECORD  - MPEG2 record data rates: 2MBit/sec, 4MBit/sec, 6Mbit/sec,
                                        8Mbit/sec, 12Mbit/sec.
               Selections for DVD Standard play (8MBitsec), DVD Long Play
                 (4MBit/sec) and DVD Extra Long Play (2.5MBit/sec).
               NTSC format at 29.97fps: Full D1: 720x480, MPEG1: 352x240
               Audio capture formats: 32/44.1/48 KHz, 16bit stereo,
                 192/224/384Kbits/sec.
               Video digitizer: 10 bits
               Chroma sampling: YUV 4:2:2
               Four line adaptive comb filter for both NTSC and PAL to
                 remove dot crawl.
               Fast video locking for security camera applications.
               Video file format: .MPG
               MPEG file tested compatible with: MediaStudio 6.0, MyDVD and
                 DVD MovieFactory DVD authoring applications.
SOFTWARE     - WinTV CD-ROM includes:
                  WinTV2000 application for TV in a window, Program Pause,
                    TV record and playback.
                  WinTV-Scheduler for scheduling your TV recording.
                  WinTV MPEG editor for high quality cutting and pasting of
                    your video movies.
                  Ulead DVD MovieFactory, to author your own videos on DVD
                    or CD.
                  Installation and reference manual
REQUIREMENTS - Pentium III processor 733MHz or faster
               Microsoft Windows XP/2000
               Free PCI slot
               Sound card
               CD-RW or DVD writer for burning Video CD's, S-VCD's or DVD's
                 (optional).
 www.hauppauge.com
