| Manufacturer |
Startech Computer Products |
| Manufacturer Part Number |
SV841HDI |
| Manufacturer Website Address |
www.startech.com |
| Product Name |

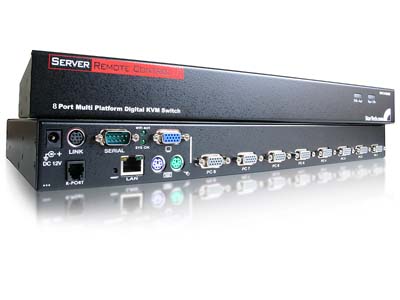

8 Port Digital KVM Switch |
| Marketing Information |
The SV841HDI empowers you to securely manage up to 8 computers
remotely from almost anywhere using your LAN or the Internet. Unlike
software solutions that require installation and work through your
server's operating system, the SV841HDI gives you BIOS level control
and full interaction with your system's boot process . Control does not
come at the expense of security: SSH tunneling, SSL encryption, RADIUS
authentication, and a configurable firewall are all included to ensure
that your network stays secure. With both USB and PS/2 support, this
switch easily handles a mixed platform environment to provide a central
point of administration for all your servers. For added flexibility you
can attach your existing KVM switches to the SV841HDI to remotely
control up to 64 computers, and its standardized 1U rack-mountable
metal chassis allows easy installation in your rack or cabinet.
|
| Product Type |
Digital & Analog KVM Switch |
|
| Number of Computers |
8 |
| Daisy Chain |
64 |
| Number of Users |
4 |
| Video Signal |
VGA |
| Graphics Resolution |
1920 x 1440Maximum |
| Security |
SSH tunneling
SSL encryption
RADIUS authentication
Configurable firewall
|
| Platform Support |
PC
Sun
Mac
|
|
| User/Console Ports |
1 x 15-pin D-Sub (HD-15) VGA
1 x 6-pin mini-DIN (PS/2 Style) Mouse
1 x 6-pin mini-DIN (PS/2 Style) Keyboard
|
| Computer Ports |
8 x 15-pin D-Sub (HD-15) Female Keyboard/Mouse/VGA |
| Other Ports |
1 x 9-pin D-Sub (DB-9) RS-232 Management
1 x RJ-45 Management
1 x RPORT RS-232
|
|
| Input Voltage |
12 V DC |
| Input Current |
1.5A |
|
| Color |
Black |
| Form Factor |
1U Rack-mountable |
|
| Additional Information |
Each computer name can be defined via the OSD menu
Includes direct dial in capability, via modem
Flash upgradeable
Supports IntelliMouse (Pro)
Maximum Digital Resolutions: 1600 x 1200 @ 85Hz
Enclosure type: steel
|
| Certifications & Standards |
Plug & play
CE
FCC
|
|
| Standard Warranty |
1 Year(s) Limited |
