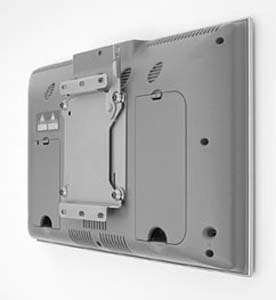

MODEL- FSM4100            VENDOR- CHIEF MANUFACTURING

FEATURES- Static Wall Mount Q2 Mounting System
       Chief's new FSM 4000 Series Static Wall Mount holds Small Flat Panel
        Displays close to the wall for an exceptionally slim appearance at
        an attractive price. The FSM uses Chief's Q2 Mounting System for
        easy installation, stable mounting, quick release and optional
        security.
 * Exclusive Q2 Mounting System secures Small Flat Panel Display with a
   lockable latch
 * Depth: 7/8"
 * Display installs in portrait/landscape views
 * Touchscreen compatible
 * Two mounting methods: Single wall stud or Drywall mounting
 * 1" vertical or lateral shift
 * Includes interface bracket
 * Ships assembled

 -- SPECIFICATIONS --------------------
Distance from Wall: 7/8"
Overall Dimensions: 7 5/8"h x 5 5/8"w x 7/8"d
                    193.7mm x 142.9mm x 22.22mm on most models
Color:              Silver Metallic
Weight Capacity:    45 lbs. stud mounted
                    30 lbs. drywall mounted
Interface brackets compatible with all other 4000 Series products
www.chiefmfg.com
