MODEL- FWP110S            VENDOR- CHIEF MANUFACTURING

FEATURES- Pivot/Pitch Wall Mount- Silver

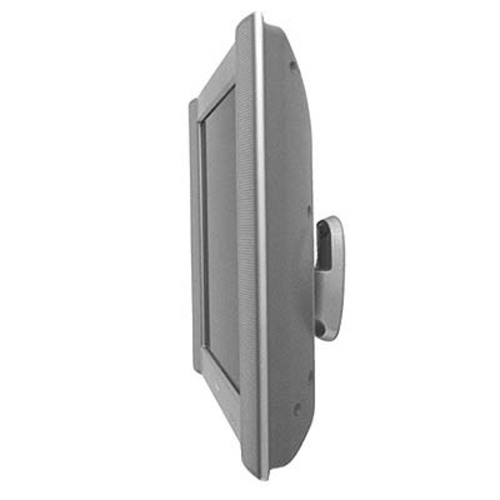

       Chief's FWP-110 Pivot/Pitch Wall Mount attaches Small Flat Panel
        Displays to the wall and provides smooth pivot and pitch adjustment
        for different viewing angles and ergonomic needs.
       Please call customer service for verification of VESA status of your
        Small Flat Panel Display. For non-VESA compliant screens, you must
        order a separate FSB interface bracket.
* VESA compliant (75 mm / 100 mm). Interface brackets available for non-
  VESA compliant displays.
* Ships assembled.
* Easy installation - Attach wall plate to single stud. Attach display to
  mount. Slide mount onto plate. Secure hardware.
* Sleek, attractive design hides all hardware.
* Smooth Pitch adjustment 15 degrees up, 15 degrees down by hand. Gravity-
  centered Pitch self-adjusts to securely hold different display weights.
* Portrait/landscape rotation 360-degrees.
* Independently adjustable tension at pivot points for customized control.
  Tension can be optimized for touchscreen use.

 -- SPECIFICATIONS ------------------------------------
ROTATION:           Portrait/landscape rotation 360 degrees
COMPATIBILITY:      Compatible with FSA-1005 accessory for integrated
                     security
DEPTH:              2.93 inches (7.45 cm)
ADJUSTMENT:         Side-to-side pivot adjustment up to 180 degrees
                     depending on installation
OVERALL DIMENSIONS: 7.24"h x 4.69"w x 2.93"d (18.38 x 11.91 x 7.44 cm)
COLOR:              Silver Metallic
WEIGHT CAPACTIY:    40 lbs. (18.14 kg)
