Product Description:
Features / Specifications

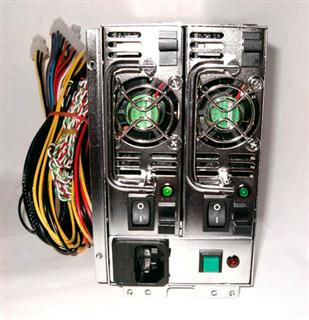

| I-Star TC-400R8 |
| Features |
Specifications |
Item
No
|
TC-400R8
|
Dimension
|
D
174 x W 150 x H 86 mm
|
| PS/2 Size Design |
90-132V/180-264V auto-select
AC voltage |
| Hot-Swappable&Power
Sharing Capability |
+5V max 35A |
| Alarm Reset Button |
+3.3V max 24A |
| Over-Voltage Protection |
+12V max 18A |
| Short Circuit Protection |
-5V max 0.5A |
| Over Power Protection |
-12V max 0.8A |
| No-Load Protection |
+5V S/B max 2.0A |
| UL/CE/TUV/CB/FCC Approvals |
Reliability: 100,000hrs full
load@25C Ambient Temp. |
|
|
|
