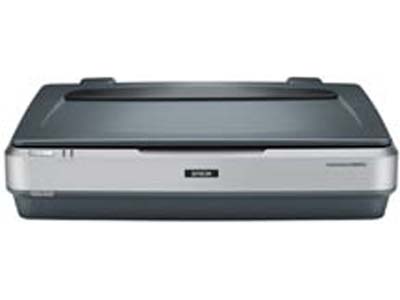

MODEL- EXPR1000-PH        VENDOR- EPSON AMERICA

FEATURES- Expression 10000XL Scanner- Photo version
       The high performance 2400 dpi, large-format scanner for professional
        photographers and graphic artists.
       With 2400 dpi resolution--higher than any other B-size flatbed
        scanner available today--plus a 3.8 Dmax and 48-bit color, the
        Epson Expression 10000XL offers everything professional
        photographers and graphic artists require for high-quality, large-
        volume scanning.
       A reliable performer that is sure to increase productivity, this
        hardworking scanner features Epson s exclusive ColorTrue II Imaging
        System, which combines superior image processing, a Xenon lamp,
        and Epson MatrixCCD technology for enhanced colors and pinpoint
        registration. Its 3.8 Dmax delivers a broad dynamic range with
        excellent shadow detail. And, an AutoFocus optics system, when
        activated, adjusts the focus and captures clear, precise images
        every time.
       The Expression 10000XL scans virtually anything, including
        reflective media up to 12.2" x 17.2." And, it is available in two
        configurations--a Photo model, with a transparency unit for
        scanning transparencies up to 12.2" x 16.5," and a Graphic Arts
        model. Each includes both USB and FireWire (IEEE 1394) connectivity
        for most Windows and Macintosh systems. There is also an optional
        network card.
       Best of all, these durable scanners speed through every task to
        digitize images quickly and easily. They even offer an optional
        automatic document feeder for multiple-page scanning. For increased
        productivity and remarkable results in professional graphic arts
        and photographic applications, the solution is simple--the Epson
        Expression 10000XL.
   Includes Scanner, USB cable, Transparency Unit, Photo software bundle
     and manual.
* Extraordinary image quality with 2400 x 4800 dpi resolution
* Works together with Micro Step Drive technology to deliver brilliant
  clarity and detail.
* Smooth gradations with 48-bit color
* Captures over 4 trillion colors and 4,096 shades of gray
* Convenient large-format scanning
* Accommodates reflective media up to 12.2" x 17.2"
* Enhanced color with ColorTrue II Imaging
* Combines superior image processing, a long-lasting Xenon lamp, and Epson
  MatrixCCD technology for bold, vibrant scans.
* 3.8 Dmax for precision reproductions
* Accurately scans each image, including film and transparencies, for
  remarkable precision, even in shadow areas.
* Quick scans with Hi-Speed USB and FireWire connectivity
* Enhanced operation for most Windows or Macintosh systems
* Powerful performance with fast scanning speeds
* Speeds through an 8.5" x 11" color image at 300 dpi in under 23 seconds.
* Batch scanning for increased productivity
* Scans multiple images at one time and saves files to a PC (scans up to 48
  35mm negatives, 30 35mm slides, eight 4" x 5" transparencies or six
  medium-format transparencies).
* Production level reliability
* Boasts a 100,000 cycle MCBF (mean cycles between failures) rating.

  -- SPECIFICATIONs ---------------------------------------
INTERFACE/BUS- (1) USB 2.0 port
               (1) IEEE-1394a/FireWire port
SCANNER TYPE - Flatbed color image scanner
               Scanning Method     : Movement of the carriage
               Photoelectric Device: Epson MatrixCCD line Sensor
               Light Source        : Xenon gas cold cathode fluorescent
                                      lamp.
               Read Sequence       : One-pass scanning
               Focus Control       : AutoFocus optics system (CCD and lens
                                      Unit)
RESOLUTION   - Optical             : 2400 dpi
               Hardware            : 2400 x 4800 dpi with Micro Step Drive
                                      technology.
               Maximum             : 12,800 x 12,800 dpi with interpolation
               Effective Pixels    : 87,840 pixels/line (2400)
MAX READ AREA- 12.2" x 17.2" (310 mm x 437mm)
IMAGE DATA   - Color Depth: 16-bits per pixel internal/external
               Grayscale  : 16-bits per pixel internal/external
               Line Art   :  1-bit  per pixel
SCAN SPEED   - (2400 dpi, draft mode)
               Color      : 16.0 msec/line (approx.)
               GrayScale  :  5.3 msec/line (approx.)
               Line Art   :  5.3 msec/line (approx.)
SCALING(Zoom)- 50% to 200% (1% steps)
DENSITY      - Optical: 3.8 Dmax
BRIGHTNESS   - 7 levels
O/S SUPPORT  - Windows 98SE/2000/ME/XP
               Macintosh OS 9.1 or late
ENVIRONMENTAL- Operating Temperature: 41 ~ 95 degrees F
               Operating Humidity   : 10 ~ 80 % (no condensation)
SOFTWARE- Epson Scan
          LaserSoft Imaging SilverFast Ai 6
          MonacoEZcolor with reflective IT8 Target
          Adobe Photoshop Elements 2.0
          ABBYY FineReader Sprint OCR
REQUIRES- PC: Pentium II equivalent or faster
              512MB RAM
              Windows XP (Pre-installed or upgrade of Windows 98SE/2000)
              (USB 2.0 Host Driver by Microsoft is required) or
              FireWire port and Windows 2000/ME/XP.
         Mac: Macintosh GB (with built-in USB) processor or higher
              512MB RAM
              MacOS 9.1 or later, MacOS X 10.2, 10.3.x (for USB 1.1)
              MacOS X 10.2.7, 10.3x (for USB 2.0)
              MacOS 9.1 or later, MacOS X 10.2, 10.3.x (for FireWire)
OPTION  - B813212         Automatic Document Feeder
          B12B808393      Scanner Network Interface Card
MCBF - 100,000 cycles
POWER- AC100~120V, 220V~240V; 50/60Hz; Consumption: 45W
SIZE - 25.8"w x 6.20"h x 18.0"d               WT.- 28.7 lbs.
  www.epson.com
