MODEL- HAO9SI             VENDOR- HAWKING TECHNOLOGIES

FEATURES- Hi-Gain 9dBi Omni-Directional Wireless Antenna Kit
       Connect Anywhere, Anytime HAO9SIP is one of Hawking's Hi-Gain 24
        Series, 2.4 GHz Wireless Antenna Line. Hawking offers a complete
        solution for all your wireless signal boosting needs. The Outdoor
        Antenna Kits provide wireless users with a high powered solution to
        extend their wireless network, whether extending the wireless
        network from one corporate building to another, or simply from the
        front house to the back house.
       The Outdoor Omni-Directional Antenna emits a powerful amplified
        signal over a 360 degree radius, delivering a strong multi-
        direction signal from an Access Point or a Bridge. If you have
        multiple locations or buildings where you would like to integrate
        your wireless network, simply place the HAO9SIP in between the
        buildings with your Acess Point. It is most effective when placed
        at the top of buildings or in the center of large rooms. The
        HAO9SIP also comes with a mounting kit, connectors, and a surge
        protector.
        Note: HAO9SI Antenna kit does not include outdoor cables, which is
              necessary for long distance outdoor applications. Hawking
              carries 10 ft (HAC10N) and 30 ft (HAC30N) Outdoor antenna
              cables. Signal strength decreases through long cables. To
              maximize the signal strength, use the shortest cable possible
              or use the higher gain antennae (HAO14SD)for further
              distance.

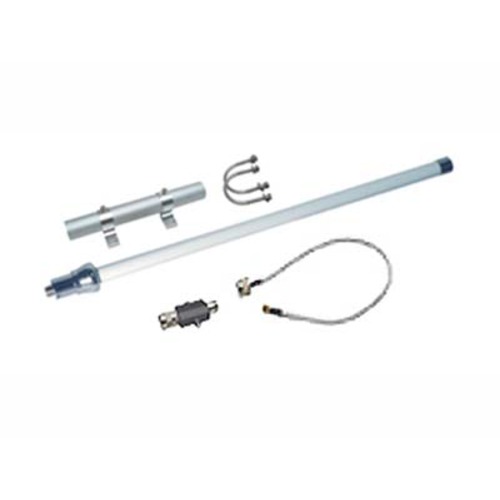

    Includes Hi-Gain Outdoor Wireless Omni-Directional Antenna, RP-SMA
      cable for wireless device (indoor cable), TNC jumper cable, Mounting
      kit, Surge protector, Water-proof tape, User manual.
* 2.4 GHz Frequency: Works with all 802.11b/g Wireless Standards.
* Reverse SMA Plug: Compatible with most Access Points/Adapters.
* 9dBi External Onmi-Directional Antenna: Ensures optimal coverage.
* 360 Degree Signal Amplification: Increase your outdoor wireless network
  strength.
* Extend your Network: Range up to 1.5 miles.

  -- SPECIFICATIONs --------------------------------------
NETWORK      - IEEE 802.11b WLAN Standard
               IEEE 802.11g WLAN Standard
               Wireless 2.4 GHz Network
FREQUENCY    - 2.4 ~ 2.4835 GHz
ELECTRICAL   - Impedance   : 50 Ohms nominal
               Gain        : 9.0 dBi
               Polorization: Linear, Vertical
               H-plane     : 360 degrees
               E-plane     : 15 degrees
MOUNTING     - Pole mountable
               Wall mountable
CONNECTOR    - RP-SMA, N-Plug
CABLE        - HDF400 (AC10N/AC30N)
REQUIRES     - IEEE802.11b or IEEE 802.11g 2.4Ghz Wireless Network.
               Wireless Device with Reverse-SMA Connector (Access Point/
                Wireless Router/Wireless Network Adapter/Wireless Bridge).
               HAC10N or HAC30N Outdoor Cable Extension
               Network Operations Systems Support: Microsoft Windows
                95/98/2000/NT/ME/XP and more!
SIZE - 45mm w x 45mm h x 620.5mm d            WT.- 16.69 oz.
