Product Description:
Tech Data Template
| Marketing Description: For a
truly simple way to bring the Internet to any room in your home, look
no further than NETGEAR's Wall-Plugged Ethernet Bridge. It plugs into
an electrical outlet and uses your existing electrical wiring to give
your entire household access to your Cable/DSL connection. With no
expensive new wiring or cabling to install, your family can surf the
Web, participate in online gaming, send and receive e-mail, and share
files and printers, all from different rooms at the same time.
Uncomplicated and very quick to install, it plugs right into a wall
outlet, reducing clutter and saving valuable desk space. Designed for
ease of use, it has new, easy-to-read icon LEDs, and protects your
network communications from eavesdroppers and hackers, while not
increasing your electricity bill. |
| Product Description |

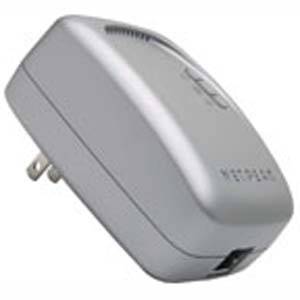

NETGEAR Powerline Ethernet Bridge XE102 - bridge |
| Device Type |
Bridge |
| Form Factor |
External |
| Dimensions (WxDxH) |
3.9 in x 1.9 in x 2.9 in |
| Weight |
0.4 lbs |
| Localization |
English / United States |
| Data Transfer Rate |
14 Mbps |
| Data Link Protocol |
Ethernet, HomePlug 1.0 |
| Compliant Standards |
IEEE 802.3, HomePlug 1.0 |
| Power |
AC 120 V ( 60 Hz ) |
| System Requirements |
Microsoft Windows 98/ME/2000/XP |
| Manufacturer Warranty |
2 years warranty |
| General |
| Device Type |
Bridge |
| Form Factor |
External |
| Width |
3.9 in |
| Depth |
1.9 in |
| Height |
2.9 in |
| Weight |
0.4 lbs |
| Localization |
English / United States |
| Networking |
| Connectivity Technology |
Wired |
| Data Transfer Rate |
14 Mbps |
| Line Coding Format |
DBPSK, DQPSK, ROBO |
| Data Link Protocol |
Ethernet, HomePlug 1.0 |
| Spread Spectrum Method |
OFDM |
| Status Indicators |
Link activity, power, link OK |
| Compliant Standards |
IEEE 802.3, HomePlug 1.0 |
| Expansion
/ Connectivity |
| Interfaces |
1 x network - Ethernet
10Base-T - RJ-45
1 x network / power - HomePlug 1.0 - power |
| Miscellaneous |
| Cables (Details) |
1 x network cable - 6 ft |
| Encryption Algorithm |
DES |
| Compliant Standards |
FCC Class B certified, UL |
| Power |
| Power Device |
Power supply - internal |
| Voltage Required |
AC 120 V ( 60 Hz ) |
| Software
/ System Requirements |
| Software Included |
Drivers & Utilities |
| OS Required |
Microsoft Windows 98/ME/2000/XP |
| Manufacturer
Warranty |
| Service & Support |
2 years warranty |
| Service & Support Details |
Limited warranty - 2 years |
| Environmental
Parameters |
| Min Operating Temperature |
32 °F |
| Max Operating Temperature |
104 °F |
| Humidity Range Operating |
10 - 90% |
|
|
