Product Description:
AXIS Rack Solution
AXIS Rack Solution helps large, surveillance
installations manage Axis video servers in a professional environment.
 The solution consists
of a 19-inch AXIS Video Server Rack, and any combination of AXIS 240Q,
AXIS 241Q and AXIS 241S Blade Video Servers.
Designed for improved serviceability and quick
replacement of units, the rack holds up to 12 interchangeable and
hot-swappable blades, so there is no need to power down when installing
or changing blades. The AXIS Rack Solution combines high reliability
and functionality with quick, flexible and professional installation.
Solution components:
- AXIS Video Server Rack, a 19-inch rack that provides 12
slots for the Axis blade video servers. The rack provides network,
serial communication and I/O connectors at the rear of each slot, and a
common power supply for the blade video servers.
Features:
- Quick and professional installation of various
video servers in the same rack
- Expandable system, simply by adding blades and
wiring up
- Integrated power supply for easy
installation/expansion, and easy addition of back-up power solutions
- Higher density of video channels compared with
stand-alone solutions
- Improved serviceability and trouble-free unit
replacement
- Blade Video Servers
(Check each product page for more details)
| |
Ch. |
Video |
Max
frame
rate/ ch. |
VMD |
Alarm
inputs/
outputs |
PTZ
support |
HTTPS |
Audio
support |
AXIS
240Q |
4 |
Motion JPEG |
6/5
(4CIF) |
Yes |
4/4 |
Yes |
Yes |
No |
|
AXIS
241Q |
4 |
Motion JPEG
|
30/25¹
(CIF)
|
Yes |
4/4 |
Yes |
Yes |
No |
| MPEG-4 |
20/17¹
(CIF) |
|
AXIS
241S |
1 |
Motion JPEG
|
30/25
(4CIF)
|
Yes |
4/4 |
Yes |
Yes |
No |
| MPEG-4 |
30/25
(2CIF) |
|

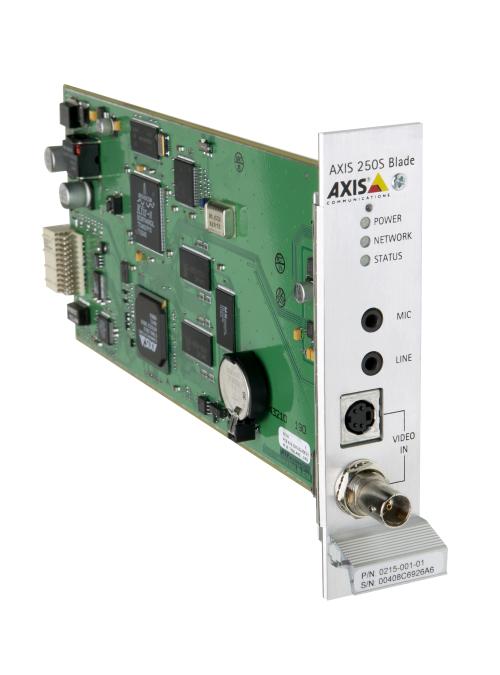

AXIS
250S |
1 |
MPEG-2 |
30/25
(4CIF) |
No |
4/1 |
Yes |
No |
Yes |
|
VMD = Video
motion detection
Frame rate = NTSC/PAL
¹ Running 4 channels simultaneously |
| Product Description |
Axis Video Server 241S Blade - video server |
| Device Type |
Video server |
| Enclosure Type |
Plug-in module |
| Processor |
1 x Axis ETRAX 100LX |
| RAM Installed ( Max ) |
32 MB |
| Flash Memory Installed (Max) |
8 MB flash |
| Data Link Protocol |
Ethernet, Fast Ethernet |
| Network / Transport Protocol |
TCP/IP |
| Remote Management Protocol |
HTTP |
| General |
| Device Type |
Video server |
| Processor / Memory / Storage |
| Processors Installed |
1 x Axis ETRAX 100LX |
| RAM Installed ( Max ) |
32 MB SDRAM |
| Flash Memory Installed (Max) |
8 MB flash |
| Networking |
| Form Factor |
Plug-in module |
| Connectivity Technology |
Wired |
| Digital Video Format |
MJPEG |
| Data Transfer Rate |
100 Mbps |
| Data Link Protocol |
Ethernet, Fast Ethernet |
| Network / Transport Protocol |
TCP/IP |
| Remote Management Protocol |
HTTP |
| Expansion / Connectivity |
| Interfaces |
1 x display / video - composite video
input - BNC |
| Compatible Slots |
1 x expansion slot |
| Environmental Parameters |
| Min Operating Temperature |
41 °F |
| Max Operating Temperature |
122 °F |
| Humidity Range Operating |
20 - 80% |
|
|
