Product Description:
Introduction
|
|

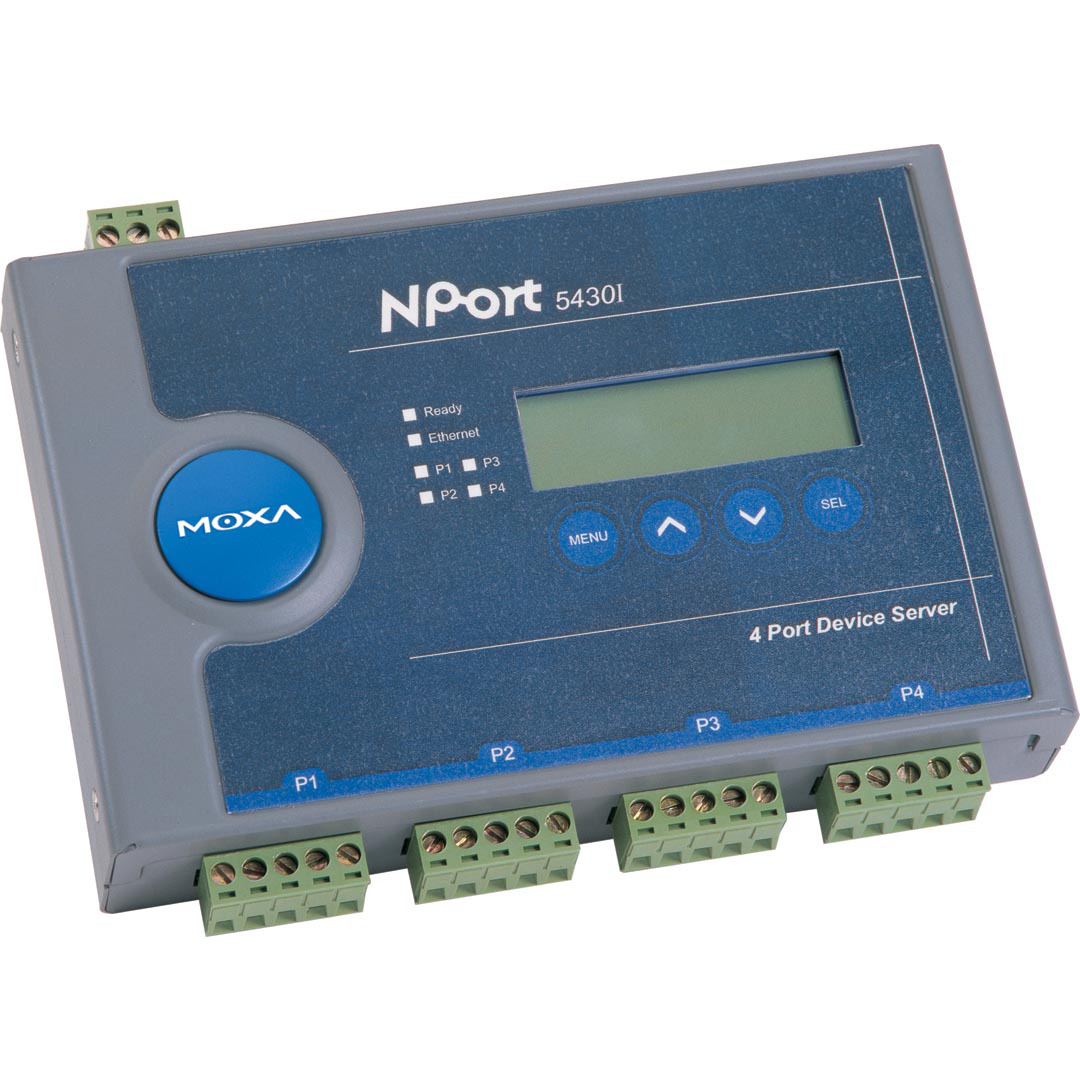

Make up to 4 RS-422/485 serial devices Internet-ready
The NPort 5430 Series provides a convenient and transparent
way to connect serial devices to an Ethernet, with basic configuration
all that's needed to network your existing serial devices. Protect your
current hardware investment, but also ensure future network
expandability. Moreover, NPort 5430 can transparently transmit data
bi-directionally between the serial and Ethernet interfaces.You can
simultaneously centralize your serial device management and distribute
management hosts over the network.
Easy-to-use Serial Device Server
The built-in LCM human-machine interface displays all
configuration parameters,and includes 4 buttons for inputting data, or
for selecting the operation mode, making it easy to set up server
parameters, including IP address, netmask, and gateway address.
Furthermore, you can also monitor server status and data transmission,
eliminating the need to prepare additional PCs during installation.
Real COM/TTY Port
NPort 5430 works like an add-on multiport serial board to the
Windows host, but with one major advantage—the TCP/IP network. With
NPort's Real COM/TTY drivers, the serial ports on NPort 5430 are
recognized as Real COM ports by the Windows operating system, or Real
TTY ports by Linux environments. The usual transmit/receive data
signals are provided for RS-422, and 2-wire and 4-wire RS-485.
4 independent serial ports can be configured for
different operation modes
Versatile operation is ensured since different modes can be
used for different serial ports. NPort 5430 Series products are
suitable for connnecting different devices for remote data polling,
event handling, or data multicasting via the TCP/IP network. For
example, you can configure NPort 5430's port 1 for driver mode, port 2
for TCP server mode, and ports 3 and 4 for TCP client mode.
|
Features
|
 |
Easy-to-use LCM (Liquid Crystal Module)
interface for IP address configuration |
|
|
Auto-detecting 10/100 Mbps Ethernet |
|
|
4 RS-422/485 ports |
|
|
Surge protection for all serial signals (15
KV ESD) |
|
|
Supports TCP Server, TCP Client, UDP, and
Real COM Modes |
|
|
Supports web and Telnet consoles |
|
|
Supports SNMP MIB-II for network management |
|
|
NPort 5430I come with 2 KV of isolation
protection |
|
|
|
Specifications
|
| LAN |
|
|
|
| 10/100 Mbps, RJ45, Auto MDI/MDIX |
|
|
|
|
| Built-in 1.5 KV magnetic isolation |
|
|
|
|
| |
| Serial Interface |
|
|
|
|
|
|
|
|
|
|
|
|
RS-422: Tx+, Tx-, Rx+, Rx-, GND
4-wire RS-485: Tx+, Tx-, Rx+, Rx-, GND
2-wire RS-485: Data+, Data-, GND |
|
|
|
|
15 KV ESD for all signals
2 KV isolation for NPort 5430I |
|
|
|
|
4 KV Burst (EFT), EN61000-4-4
2 KV Surge (EFT), EN61000-4-5 |
|
|
|
|
| Patented Automatic Data Direction Control (ADDC™) |
|
|
|
|
| |
| Advanced Built-in Features |
|
|
|
| LCM display with four push buttons |
|
|
|
|
| |
| Serial Communication Parameters |
|
|
|
| None, Even, Odd, Space, Mark |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
| Software Features |
|
|
|
| ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP, HTTP,
SMTP, SNTP |
|
|
|
|
| NPort Administrator for Windows 95/98/ME/NT/2000/XP |
|
|
|
|
| Windows 95/98/ME/NT/2000/XP/2003 Real COM drivers, Linux
real tty driver (contact Moxa to inquire about availability) |
|
|
|
|
| Web Browser, Telnet Console, or Windows Utility |
|
|
|
|
| |
| Power Requirements |
|
|
|
|
|
|
NPort 5430: 360 mA (at 12V max.)
NPort
5430I: 585 mA (at 12V max.) |
|
|
|
|
| |
| Mechanical |
|
|
|
| SECC sheet metal (0.8 mm) |
|
|
|
|
176 x 103 x 33 mm (including ears)
158 x 103 x 33 mm (without ears) |
|
|
|
|
|
|
|
| |
| Environmental |
|
|
|
| 0 to 55°C (32 to 131°F), 5 to 95% RH |
|
|
|
|
| -20 to 70 °C (-4 to 158°F), 5 to 95% RH |
|
|
|
|
| |
| Regulatory Approvals |
|
|
|
|
Ordering Information
|
|
|
| 4-Port
RS-422/485 Serial Device Server |
|
|
|
| NPort
5430, w/ 2 KV isolation |
|
|
|
|
4-port Serial Device Server
Quick Installation Guide
NPort Document and Software CD-ROM
Power Jack to TB Power Cable
|
|
|
|
|
Optional Accesories
|
|
|
| DIN-Rail
Mounting Kit (35 mm) |
|
|
|
|
|
