Product Description:
Moxa PD Frame
Introduction
|

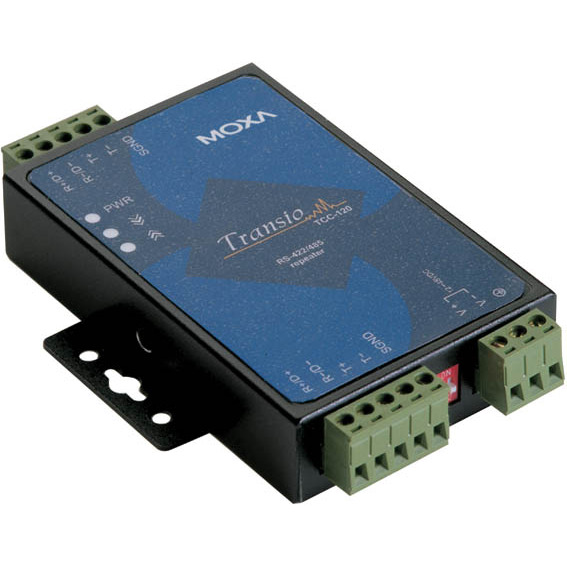

| TCC-120I is an isolated
RS-422/485 repeater designed for users who need
an industrial grade interface conversion product to extend RS-422/485
transmission distance. Its superior industrial application design,
which includes DIN-Rail mounting, terminal block wiring, external
terminal block power, and optical isolation for system protection,
makes TCC-120I suit able for use in critical industrial environments. |
Features
|
 |
Boost serial signal to extend transmission distance |
|
|
Wall or DIN-Rail mountable |
|
|
Terminal block for easy wiring |
|
|
Power input from terminal block |
|
|
DIP Switch enabled built-in terminator (120 ohms) |
|
|
PWR, Tx, Rx LEDs |
|
|
Embedded Surge protection (16 KV ESD) |
|
|
2 KV Isolation (TCC-120I) |
|
|
Specifications
|
|
| Serial Communication |
|
|
|
| Tx+, Tx-, Rx+, Rx-, Data+, Data- |
|
|
| RS-485 Data
Direction Control |
|
|
|
|
|
|
|
| 15 KV ESD RMS, for all signals |
|
|
|
|
| 2 KV (TCC-100I), Power/Signal |
|
|
|
|
| |
| Environmental |
|
|
|
|
|
|
| -20 to 75°C (-4 to 167°F) |
|
|
|
|
|
|
|
| |
| Power Consumption |
|
|
|
| External Power 12-48 VDC, Terminal Block |
|
|
|
|
| Protects against V+/V- reversal |
|
|
|
|
| Protects against 2 signals shorted together: 1.1A |
|
|
|
|
TCC-120: 1.18W,
198 mA at 12V (max.)
TCC-120I: 2.8W, 234 mA at 12V (max.) |
|
|
|
|
| |
| Mechanical |
|
|
|
67 x 100 x 22 mm
90 x 100 x 22 mm (including DIN-Rail Mounting Kit) |
|
|
|
|
|
| Plug-in screw
terminal block |
|
|
|
|
|
|
|
|
|
|
| |
| Regulatory Approvals |
|
|
|
| |
|
Ordering Information
|
|
|
|
|
|
| RS-422/485
Repeater with Optical Isolation |
|
|
|
|
DIN-Rail Mounting Kit (DK35A)
User's Manual
|
|
|
|
| |
|
Optional Accesories
|
|
|
