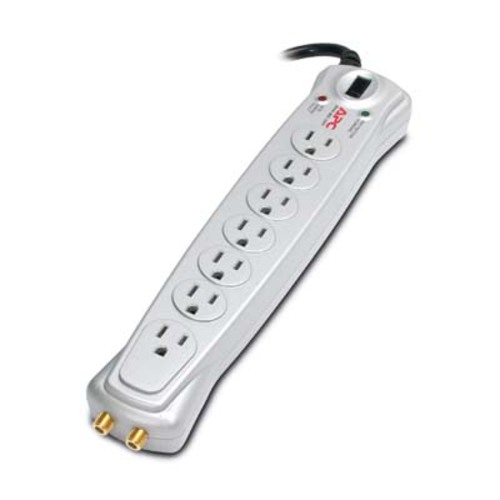

MODEL- P7V                VENDOR- AMERICAN POWER CONVERSION

FEATURES- SurgeArrest Audio/Video Surge Protector- Silver
       Audio/Video Surge Protector 7 Outlet with Coax.
       Reliable surge protection for audio and video equipment.
       Includes Surge Protector with 6 foot Gold Plated Coaxial Cable, User
        Manual.
* 180 degree Rotating Cord Retainer
   A 180-degree rotating cord with strain relief offers flexibility in
   positioning the SurgeArrest, and in routing the power cord.
* Adjustable Cable Management
   Keeps cords and cables neat and organized.
* Transformer Block Spacing
   Connect bulky transformer block plugs without covering up other outlets.
* Building wiring fault indicator
   Immediately warns you of wiring problems like improper grounds that
   could cause shocks or prevent adequately suppressing surges.
* Catastrophic Event Protection
   SurgeArrests components such as MOVs and Thermal fuse ensure
   instantaneous reaction to lightning strikes and wiring faults. If the
   surge components are damaged due to power spike or over voltage, excess
   power cannot reach your equipment. Unlike APCs SurgeArrest products,
   most surge suppressors continue to let power through even after circuits
   have been damaged, leaving your equipment exposed to other damaging
   surges.
* Fail Safe Mode
   Most other surge suppressors continue to let power through even after
   their circuits have been damaged, leaving your equipment exposed to
   future surges. APCs SurgeArrest fail safe, which means that once the
   circuit of an APC SurgeArrest has been compromised the unit disconnects
   equipment from the power supply ensuring that no damaging surges reach
   your equipment.
* IEEE let-through rating and UL 1449 compliance
   IEEE tests simulate a surge of 6.000 volts, such as in a direct
   lightning hit. Let through rating indicates the maximum voltage that
   will reach your equipment when suppressed by a SurgeArrest. Lower let
   through rating indicates better protection. ULs best available rating
   against devastating surges and spikes is 330V of let through. APCs
   Essential SurgeArrest has 330V let through voltage, thus meeting ULs
   requirement.
* Noise Filtering
   Surge Protector attenuates EMI/RFI line noise that can cause data errors
   and keyboard lockups, ensuring better performance of protected
   equipment.
* Receptacle Shock Safety Shutters
   Shutters protect users from accidental contact with unused outlets.

  -- SPECIFICATIONs -----------------------------------
OUTPUT SPECs- Outlets            : (7) NEMA 5-15R
INPUT SPECs - Nominal voltage    : 120 Volts
              Frequency          : 50/60 Hz +/- 5 Hz (auto sensing)
              Connection Type    : NEMA 5-15P
              Max. Line Current  : 15 Amp per phase
              Cord Length        : 6 feet (1.83 meters)
SURGE PROTECTION & FILTERING-
              Surge energy rating: 490 Joules
              eP Joule Rating    : 1080
              Peak Current       : 10 kAmps (normal mode)
                                   10 kAmps (common mode)
              Dataline Protection: Cable modem/Video protection
              Let Through Voltage
                          Rating : < 330
APPROVALS   - CSA, UL1449, UL1363
SIZE - 3.0"w x 12.5"h x 1.4"d                   WT.- 1.1 lbs.
  www.apcc.com
