MOXA
8 ports async board, PCI bus, 921.6K bps, (requires interface option)

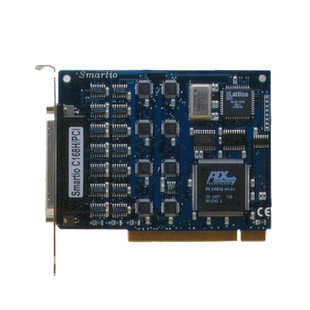

792828_MOXA_C168HPCI.jpg-PORTS_ASYNC_BOARD_PCI_BUS_921.6K_BPS_INTERFACE_OPTION

Manufacturer	MOXA
Mfg. Part #	C168H/PCI
ITEM#	297387
Unit Price	$228.80 (~CAD$228.32)
Availability	In Stock
Buy

*Currency Conversion Rate: US$1.00 = CAD$0.9979

Volume	Each	Landing Price/Each
1 ~ 2	$228.80 (~CAD$228.32)	$228.80 or less (~CAD$228.32)
3 ~ 7	$226.60 (~CAD$226.13)	$226.60 or less (~CAD$226.13)
8 ~ 14	$224.40 (~CAD$223.93)	$224.40 or less (~CAD$223.93)
15 ~ 19	$222.20 (~CAD$221.74)	$222.20 or less (~CAD$221.74)
20 ~	$190.08 (~CAD$189.69)	$190.08 or less (~CAD$189.69)

[Suggested Accessory Items]

INTERNATIONAL GROUND SHIPPING:
For qualified orders, we will waive the Brokerage/Handling Fee for Custom Clearance and Documentation
No other hidden fees will be collected from you when packages arrive. Guaranteed
[ Detailed Explanation ]

[ View Detail Product Info ]

Product Description:
Moxa PD Frame

Introduction

The C168H/PCI multiport serial board is designed for people looking for an easy-to-use 8-port serial board. Plug the C168H/PCI board into the appropriate PCI slot, and all configuration tasks will be done automatically, eliminating the need to adjust I/O addresses and IRQ hardware switches and jumpers. To improve reliability, surge protection (25 KV) and optical isolation (500V) are available as options.

The C168H/PCI board allows you to install additional RS-232 serial communication ports on your PC by providing 8 serial ports per board for connecting all types of serial devices, including terminals, modems, printers, data acquistion equipment, and more. And C168H/PCI's versatile OS driver support truly fulfills the needs of our customers' varied applications. C168H/PCI offers a reliable and high performance solution for serial multiport communications.

Benefits

Easy to install
Compact board size—ideal for PC-based embedded systems
Low cost

Applications

PC-based POS registers
PC-based postal machines
PC-based Kiosks
PC-based lottery machines
Other serial device control applications

Features

8-port RS-232 high speed PCI communication board

Compact PCI board size

Versatile OS driver support

Various connection options

Data transmission speed up to 921.6 Kbps

On-chip hardware flow control

Convenient connection cables

Specifications

Hardware

I/O Controller

16C550C or compatible x 8

Connector Type

Female DB62 (on the board)

Interface

Bus

32-bit, Ver. 2.1 PCI

Serial

RS-232, RS-422/485

No. of Ports

Performance

Speed

50 bps to 921.6 Kbps

Max. No. of Ports

32 (4 boards)

Configuration

Parity

None, even, odd, space, mark

Data Bits

5, 6, 7, 8

Stop Bits

1, 1.5, 2

IRQ

Assigned by BIOS

I/O Address

Assigned by BIOS

Operating Systems

C168H/PCI

Windows 2000/XP/2003, Windows NT, Windows 95/98/ME, Windows XP Embedded, DOS, FreeBSD 4.x, Linux 2.2.x (Alpha), Linux Base, SCO Open Server 5, SCO UnixWare 2.1.x, SCO UnixWare 7

Power and Environment

Power Requirements

260 mA max. (+5V), 100 mA max. (+12V), 60 mA max. (-12V)

Operating Temperature

0 to 55°C

Operating Humidity

5 to 95% RH

Storage Temperature

-20 to 85°C

Dimensions

123 x 100 mm (W x D)

Optical Isolation

500V (when using Optional Connector Opt8F)

Regulatory Approvals

FCC, CE

Ordering Information

C168H/PCI

PCI bus, 8-port smart serial board

All items include

MOXA Software CD-ROM: contains drivers and
MOXA PComm Lite serial comm developing tool

User's Manual

Optional Accesories

Opt8-M9

8-port, male DB9, RS-232 Connection Box

Opt8-RJ45

8-port, 8-pin RJ45, RS-232 Connection Box

Opt8A

8-port, female DB25, RS-232 Connection Box

Opt8S

8-port, female DB25, RS-232 Connection Box with surge protection

Opt8B

8-port, male DB25, RS-232 Connection Box

Opt8F

8-port, female DB25, RS-422 Connection Box with Optical Isolation

Opt8Z

8-Port, female DB25, RS-422 Connection Box

Opt8K

8-Port, female DB25, RS-422/485 Connection Box

CBL-M62M25x8-100 (Opt8C)

8-port, male DB25, RS-232 Connection Cable
