Introduction
|
|

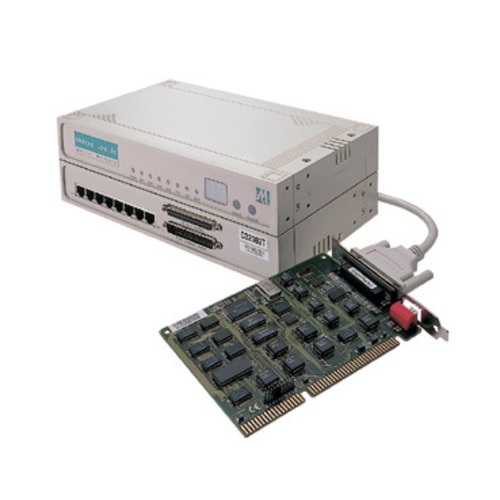

MOXA C320Turbo series, specially designed
for flexibility, is an ideal multiport serial controller for PCs. It
allows users to begin with a small-range system with 8 ports and expand
up to 128 ports, depending on business growth. In addition, users have
different options for control boards (PCI or ISA), connection modules
(rackmount or desktop), and COM port interface (RS-232 or RS-422). Any
combination of these options is possible in one system. Besides, with
high speed I/O trunk design between the control board and connection
module, the connection module can be located as far away as 100 meters.
Since only one cable is needed, this ensures that one PC can control
multiple remote serial devices with the least cost on cabling layout.
Benefits
- Serves your expansion needs well into the future,
protecting your investment
- Large on-board buffer for high-performance communication
- Provides true flexibility, with the best choice of bus
platform, connector type, COM port interface, and connection module
Applications
- Industrial automation
- Remote data acquisition
- Network console management
- Telecommunications
- Internet/Intranet server
- RAS (Remote access services)
|
Features
|
|
 |
Expands from 8 to 32 ports per board (max. 4
boards, 128 ports per system) |
|
|
Dual on-board RISC-based processors improve
I/O performance |
|
|
Connection module's display panel provides
operational status of each port |
|
|
Available with 19-inch rack-mountable or
desktop connection module |
|
|
Controls RS-232 devices 100-m away without
using a repeater |
|
|
Compatible with Windows COM ports and UNIX
tty ports |
|
|
Works perfectly with all major Operating
Systems |
|
|
| |
|
Specifications
|
|
| Control Board |
|
|
|
| 32 per board (max. 4 boards, 128 ports per system) |
|
|
|
|
|
|
|
| TMS320BC52 RISC processor |
|
|
|
|
|
|
|
| 2, 3, 4, 5, 7, 10, 11, 12, 15 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
| Operating Systems |
|
|
|
| Windows 2000/XP/2003, Windows NT, Windows NT Alpha,
Windows 95/98/ME, Windows 3.x, DOS, Linux 2.2.x (Alpha), Linux 2.4.x
(x86), SCO Open Server 5, OS/2, Sun Solaris x86 2.x |
|
|
|
|
| |
| Basic Module (Rackmount) |
|
|
|
C32080T: 8-port, RS-232,
RJ45 (10-pin)
C32081T: 16-port, RS-232, RJ45 (10-pin) |
|
|
|
|
|
|
|
| TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
|
|
|
|
| TMS320BC52 RISC processor |
|
|
|
|
| 16C550C or compatible, each with 16 byte Tx/Rx FIFO |
|
|
|
|
| COM port activity LEDs and diagnostic displays |
|
|
|
|
| |
| Extensive Module (Rackmount) |
|
|
|
C32082T: 8-port, RS-232, RJ45 (10-pin)
C32083T: 16-port, RS-232, RJ45 (10-pin) |
|
|
|
|
|
|
|
| TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
|
|
|
|
| 16C550C or compatible, each with 16 byte Tx/Rx FIFO |
|
|
|
|
| |
| CPU Module (Desktop) |
|
|
|
| C32030T: TMS320BC52 RISC processor |
|
|
|
|
| COM port activity LEDs and diagnostic displays |
|
|
|
|
| |
| UART Module (Desktop) |
|
|
|
C32045T: 8-port, RS-232, Female DB25
C32047T: 8-port, RS-232, Male DB25
C32061T: RS-422, Female DB25
C32065T: RS-422, Female DB25, with 2 KV Isolation Protection
C32071T: RS-232, Female DB25, with 25 KV ESD Surge Protection |
|
|
|
|
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: TxD+/-, RxD+/-, RTS+/-, CTS+/-, GND |
|
|
| Surge
Protection (Optional) |
|
| C32071T: 25 KV ESD, 2 KV EFT |
|
|
| Optical
Isolation (Optional) |
|
|
|
|
| |
|
Ordering Information
|
| |
| Control Board |
|
|
|
- ISA bus, control board
- MOXA software CD-ROM: contains
drivers and MOXA PComm Lite serial comm development tool
- User's Manual
|
|
|
|
| |
| Link Cables |
|
|
|
DB25
to DB25 link cable (2 m)
Note: Select C32050T for longer distances |
|
|
|
| Long
range extension kit to be used when the module is more than 2 m from
host. 90 to 240 VAC auto-selective power adaptor and a 10-pin link
cable. |
|
|
|
| |
| Rackmount Connection Modules |
|
|
|
| Choose
one per control board |
|
|
|
| 8-port RS-232 module, RJ45 (10-pin)
connectors, rackmount kit included |
|
|
|
| 16-port
RS-232 module, RJ45 (10-pin) connectors, rackmount kit included |
|
| Extension
Modules (Optional) |
|
| No.
of ports from Extensive and Basic Modules cannot exceed 32 |
|
|
|
| 8-port
RS-232 module, RJ45 (10-pin) connectors, DB37 link cable and rackmount
kit included |
|
|
|
| 16-port
RS-232 module, RJ45 (10-pin) connectors, DB37 link cable and rackmount
kit included |
|
|
|
| |
| Desktop Connection Modules |
|
|
|
| Choose
one per control board |
|
|
|
|
|
|
| Choose
1 to 4 UART Modules per control board |
|
|
|
| 8-port
RS-232 extending module with female DB25 connectors |
|
|
|
| 8-port
RS-232 extending module with male DB25 connectors |
|
|
|
| 8-port
RS-422 extending module with female DB25 connectors |
|
|
|
| 8-port
RS-422 extending module with optical isolation (2 KV), female DB25
connectors |
|
|
|
| 8-port
RS-232 extending module with surge protection (ESD 25 KV), female DB25
connectors |
|
|
|
|
Optional Accesories
|
|
|
|
| 150
cm RJ45 to female DB25 RS-232 cable |
|
|
|
| 150
cm RJ45 to male DB25 RS-232 cable |
|
|
|
| 150
cm RJ45 to male DB9 RS-232 cable |
|
|
|
| 150
cm RJ45 to female DB9 RS-232 cable |
|
|
|
| |
|
|
