Product Description:
Moxa PD Frame
Introduction
|
|

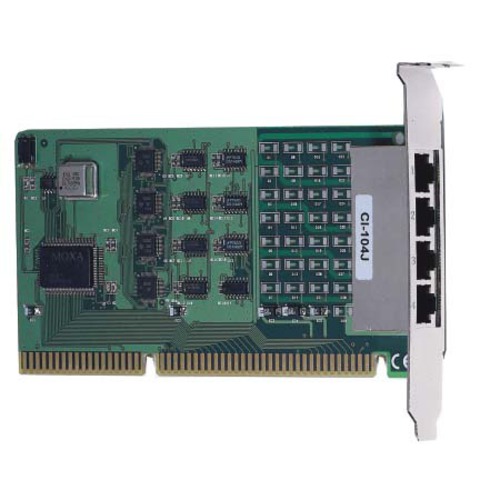

Smartio CI-104J is designed for
people looking for an easy-to-use 4-port serial board specifically
designed for POS systems. This differentiates the CI-104J multiport
serial board from the C104H series. CI-104J is a superior cabling space
saver that features a built-in RJ45 bracket design to save cable layout
space and reduce cost. This makes it suitable for applications such as
embedded systems, POS, Kiosk, ATM machines, and other PC-based embedded
systems.
Other outstanding features of the CI-104J multiport
serial board, such as its state-of-the-art ASIC design and on-chip
hardware flow control, guarantee a low repair rate and full data
integrity, making the CI-104J board highly reliable, and suitable for
24-hour service and transaction applications.
Benefits
-
Easy to install and
use—highly reliable
-
Compact board size—ideal
for PC-based embedded systems
-
More layout flexibility,
saving cabling space and cost
Applications
|
|
Features
|
 |
Low repair rate with ASIC design |
|
|
Built-in RJ45 connectors on the bracket |
|
|
Delivers fastest data transmission available,
with speeds up to 921.6 Kbps |
|
|
On-chip hardware flow control |
|
|
No switches or jumpers—easy to configure by
software |
|
|
Works perfectly with all major operating
systems |
|
|
| |
|
Specifications
|
|
|
|
|
| 16C550C or compatible x 4, each with a 16-byte Tx/Rx FIFO |
|
|
|
|
|
|
|
| |
| Interface |
|
|
|
|
|
|
|
|
|
|
|
|
| TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
|
|
|
|
| |
| Performance |
|
|
|
| |
| Configuration |
|
|
|
| None, even, odd, space, mark |
|
|
|
|
|
|
|
|
|
|
| 2 (9), 3, 4, 5, 7, 10 (Default), 11, 12, 15 |
|
|
|
|
| 0x0000-0xFFFF; Default: 0x180 |
|
|
|
|
| |
| Operating Systems |
|
|
|
| Windows 2000/XP/2003, Windows NT, Windows 95/98/ME,
Windows 3.x, DOS, FreeBSD 4.x, Linux 2.2.x (Alpha) SCO Open Server 5,
SCO UnixWare 2.1, SCO UnixWare 7 |
|
|
|
|
| |
| Power and Environment |
|
|
|
| 79 mA max. (-12V), 55 mA max. (+12V), 100 mA max. (+5V) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
Ordering Information
|
|
|
|
| ISA
bus, 4-port RS-232 board with RJ45 connectors |
|
|
|
MOXA Software CD-ROM: contains
drivers and
MOXA PComm Lite serial comm developing tool
User's Manual
|
|
|
|
| |
|
Optional Accesories
|
|
|
| 150
cm RJ45 to female DB25 RS-232 cable |
|
|
|
| 150
cm RJ45 to male DB25 RS-232 cable |
|
|
|
| 150
cm RJ45 to male DB9 RS-232 cable |
|
|
|
| 150
cm RJ45 to female DB9 RS-232 cable |
|
|
|
|
|
