Product Description:
Moxa PD Frame
Introduction
|

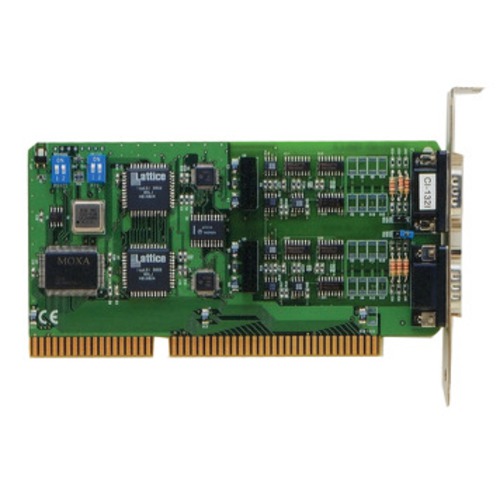

| The CI-132 Series of 2-port
serial boards is designed for RS-422/485 industrial
communication. CI-132 supports two independent RS-422 or RS-485
ports, with each port able to control up to 32 devices in a
multidrop environment. This series ICI 2-port serial boards
provides a reliable communication link (RS-422/485) over a longer
distance (up to 4000 ft), and is suitable for industrial environments.
ADDC™ (Automatic Data Direction Control) intelligence is built
into each CI-132 board to eliminate the need for software
interference. This means that applications can easily manage
half-duplex RS-485 port data transmission and receiving without the
need for extra code. In addition, on-chip hardware flow control,
built-in termination resistors, and optical isolation and surge
protection options are able to deliver high reliability for harsh
industrial applications.
Benefits
- High reliability in harsh industrial environments
- ADDC™ intelligence simplifies RS-485 software programming,
reducing developing time and cost
Applications
- Multipoint data acquisition
- Industrial control
- Factory automation
- Embedded industrial machines
- Remote serial device control
- SCADA systems
|
Features
|
 |
2-port RS-422/485 high speed communication
board |
|
|
Compact ISA board size |
|
|
Works perfectly with all major operating
systems |
|
|
Various connection options |
|
|
Data transmission speed up to 921.6 Kbps |
|
|
On-chip hardware flow control |
|
|
Easy configuration without switches or jumpers |
|
|
|
Specifications
|
|
|
|
|
| 16C550C or compatible x 2 |
|
|
|
|
|
|
|
| |
| Interface |
|
|
|
|
|
|
|
|
|
RS-422: TxD+, TxD-, RxD+, RxD-, RTS+, RTS-, CTS+, CTS-,
GND
2-wire RS-485: Data+, Data-, GND |
|
|
|
|
|
| Built-in
termination resistor |
|
| RS-422: |
120 Ohm |
| 2-wire RS-485: |
120 Ohm, jumper enabled |
|
|
|
|
|
| |
| Performance |
|
|
|
| |
| Configuration |
|
|
|
| None, even, odd, space, mark |
|
|
|
|
|
|
|
|
|
|
| 2 (9), 3, 4, 5, 7, 10 (Default), 11, 12, 15 |
|
|
|
|
| 0x0000-0xFFFF (Default: 0x180) |
|
|
|
|
| |
| Operating Systems |
|
|
|
| Windows 2000/XP/2003, Windows NT, Windows 95/98/ME, DOS,
FreeBSD 4.x, Linux 2.0.x (Alpha), Linux 2.2.x (Alpha), Linux Base |
|
|
|
|
| |
| Power and Environment |
|
|
|
CI-132: 240 mA max. (+5V)
CI-132I:
520 mA max. (+5V)
CI-132IS: 620 mA max. (+5V) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 25 KV ESD per serial port (CI-132IS) |
|
|
|
|
|
|
|
|
|
|
| |
|
Ordering Information
|
|
|
|
|
|
|
| 2-port RS-422/485 board with optical isolation |
|
|
|
| 2-port
RS-422/485 board with optical isolation and surge protection |
|
|
|
MOXA software CD-ROM; contains
drivers and
MOXA PComm Lite serial comm development tool
User's Manual
|
|
|
|
|
