MOXA
2PORT RS-422/485 UNIVERSAIL SERIAL DEVICE SERVE 10/100 ETHERNET TERMINAL BOLCK 15KV ESD 12-30VDC POWER INPUT WITH 2KV ISOLATION 5YEAR MFG WARRANTY

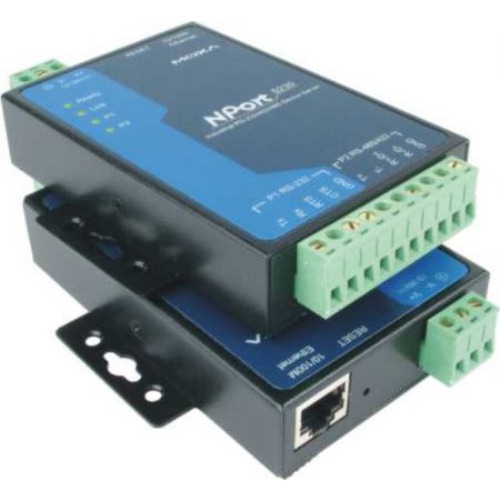

792773_MOXA_NPort5232I.jpg-2PORT_RS_422_485_SERIAL_DEVICE_10_100_ETHERNET_TERMINAL_15KV_ESD_12_30VDC_POWER_INPUT_WITH_2KV_ISOLATION_5YEAR_MFG_WARRANTY

Manufacturer	MOXA
Mfg. Part #	NPort 5232I
ITEM#	297321
Unit Price	$328.46 (~CAD$327.78)
Availability	In Stock
Buy

*Currency Conversion Rate: US$1.00 = CAD$0.9979

Volume	Each	Landing Price/Each
1 ~ 2	$328.46 (~CAD$327.78)	$328.46 or less (~CAD$327.78)
3 ~ 7	$325.30 (~CAD$324.62)	$325.30 or less (~CAD$324.62)
8 ~ 14	$322.14 (~CAD$321.47)	$322.14 or less (~CAD$321.47)
15 ~ 19	$318.98 (~CAD$318.32)	$318.98 or less (~CAD$318.32)
20 ~	$272.87 (~CAD$272.30)	$272.87 or less (~CAD$272.30)

[Suggested Accessory Items]

INTERNATIONAL GROUND SHIPPING:
For qualified orders, we will waive the Brokerage/Handling Fee for Custom Clearance and Documentation
No other hidden fees will be collected from you when packages arrive. Guaranteed
[ Detailed Explanation ]

[ View Detail Product Info ]

Product Description:

Introduction

Connect Serial Devices to Ethernet

NPort 5230 Series serial device servers are designed to make your industrial serial devices Internet ready instantly. The compact size of the NPort 5230 device servers makes them the ideal choice for connecting your RS-422/485 serial devices, such as PLCs, meters, and sensors, to an IP-based Ethernet LAN, making it possible for your software to access serial devices anywhere on a local LAN, or the Internet.

Standard TCP/IP Interface and Versatile Operation Modes

NPort 5230 serial device servers provide TCP Server, TCP Client, and UDP, ensuring the compatibility of network software that uses a standard network API (Winsock, BSD Sockets).

Real COM/TTY Drivers for Existing Software

Thanks to NPort's Real COM/TTY drivers, software that works with COM/TTY ports can now work on a TCP/IP network in no time. This excellent feature preserves your software investment and lets you enjoy the benefits of networking your serial devices instantly.

Easy installation and configuration

NPort 5230 serial device servers support automatic IP configuration protocols (DHCP, BootP) and manual configuration through the Web Browser console. Both methods ensure quick and effective installation. And with NPort 5230's Windows Utility, your installation job becomes more pleasant than ever, since all system parameters can be stored and copied to many other device servers.

Features

Make your serial devices Internet ready

Versatile socket operation modes, including TCP Server, TCP Client, UDP

Easy-to-use Windows Utility for mass installation

No bigger than a pack of cigarettes

Auto-detecting 10/100 Mbps Ethernet

2- or 4-wire RS-485 with patented Automatic Data Direction Control (ADDC™)

Built-in 15 KV ESD protection for all serial signals

Supports SNMP MIB-II for network management

Specifications

LAN

Ethernet

10/100 Mbps, RJ45

Protection

Built-in 1.5 KV magnetic isolation

Serial Interface

Interface

NPort 5230: 1 RS-422/485 port, 1 RS-232 port
NPort 5232/5232I: 2 RS-422/485 ports

No. of Ports

Port Type

Terminal Block

Signals

RS-232: TxD, RxD, RTS, CTS, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
4-wire RS-485: Tx+, Tx-, Rx+, Rx-, GND
2-wire RS-485: Data+, Data-, GND

Serial line protection

15 KV ESD for all signals
2 KV isolation for NPort 5232I

Power Line Protection

4 KV Burst (EFT), EN61000-4-4
2 KV Surge (Power), EN61000-4-5

RS-485 data direction

Patented Automatic Data Direction Control (ADDC™)

Advanced Built-in Features

Buzzer

Real-Time Clock

Watch Dog Timer

Serial Communication Parameters

Parity

None, Even, Odd, Space, Mark

Data bits

5, 6, 7, 8

Stop bit

1, 1.5, 2

Flow control

RTS/CTS (only for RS-232 port), XON/XOFF , DTR/DSR

Transmission Speed

110 bps to 230.4 Kbps

Software Features

Protocols

ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP, HTTP, SMTP, SNTP

Utilities

NPort Administrator for Windows 95/98/ME/NT/2000/XP

Real COM/TTY drivers

Windows 95/98/ME/NT/2000/XP/2003 Real COM drivers, Linux real tty driver (contact Moxa to inquire about availability)

Configuration

Web Browser, Telnet Console, or Windows Utility
Serial Console (NPort 5230 only)

Power Requirements

Power Input

12 to 30 VDC

Power Consumption

NPort 5230: 315 mA (at 12V max.)
NPort 5232: 275 mA (at 12V max.)
NPort 5232I: 365 mA (at 12V max.)

Mechanical

Casing

IP30 protection, aluminum case (1 mm)

Dimensions (W x H x D)

NPort 5230/5232
  90.2 x 100.4 x 22 mm (including ears)
  67 x 100.4 x 22 mm (without ears)
NPort 5232I
  90.2 x 100.4 x 35 mm (including ears)
  67 x 100.4 x 35 mm (without ears)

Gross Weight

NPort 5230: 0.140 kg (0.31 lb)
NPort 5232: 0.119 kg (0.26 lb)
NPort 5232I: 0.157 kg (0.35 lb)

Environmental

Operating Temperature

0 to 55°C (32 to 131°F), 5 to 95% RH

Storage Temperature

-20 to 85°C (-4 to 185°F), 5 to 95% RH

Regulatory Approvals

EMC

FCC Class A, CE Class A

Safety

UL, CUL, TÜV

Warranty

5 years

Ordering Information

NPort 5230

2-Port Serial Device Server
1 RS-422/485 port, 1 RS-232 port

NPort 5232

2-port Serial Device Server
2 RS-422/485 ports

NPort 5232I

2-port Serial Device Server
2 RS-422/485 ports, with Optical Isolation

Above items include:

2-port Serial Device Server

Quick Installation Guide

NPort Document and Software CD-ROM

Power Jack to TB Power Cable

Optional Accesories

DK-35A

DIN-Rail Mounting Kit (35 mm)
