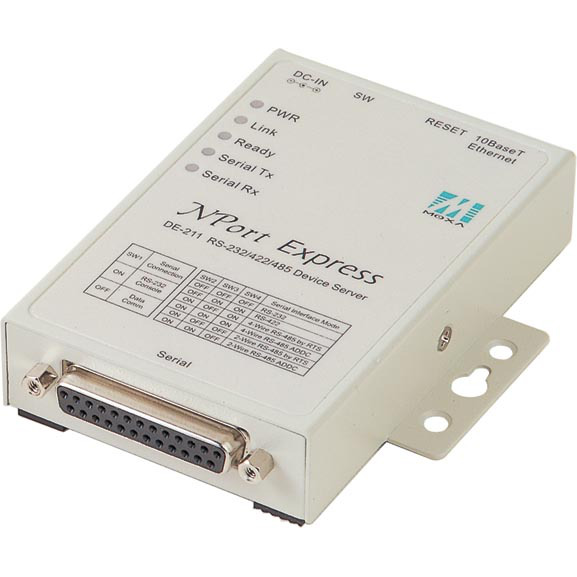

NPort Express DE-211 is a universal
serial device server that can network-enable your industrial serial
devices, such as information display boards, PLCs, flow meters, gas
meters, CNC machines, and biometric identification card readers.
Seamless integration with your
industrial serial devices and Ethernet TCP/IP network
DE-211 supports RS-232/422 and
4-wire/2-wire RS-485, and has a built-in terminator, making it fit for
all types of industrial serial devices and serial communications
topologies. The optional Power over Serial function allows DE-211 to be
powered by DC power pins inside the DB25 serial cable that connects to
the serial device, allowing DE-211 to be seamlessly integrated with
connected serial devices.
Total software solution for
serial-to-Ethernet applications
With the help of Windows Native
COM driver technology, you can keep running existing COM-based
software, such as HyperTerminal, without changing your software under
Windows and Linux operating systems. In addition, DE-211 provides
versatile Raw Connection Modes for sockets, such as TCP Server, TCP
Client, UDP Server/Client, Pair Connection, and Ethernet Modem, making
DE-211 a powerful and flexible tool for completing your important
projects.
Easy installation and
configuration with NPort Configurator
DE-211 NPort Management
Suite provides easy IP configuration, including DHCP, MAC-IP
mapping, and comes with enhanced easy configuration management and fast
deployment capabilities. Friendly Graphical User Interface management
utilities for Windows and user-configurable command mode are both
supplied.
Benefits
Network-enable your industrial serial
devices instantly
Easy IP setup and deployment for mass
installation
Easy configuration management for
local site and remote management
Easy integration with industrial
serial devices, with versatile software, power, and housing solution
Easy troubleshooting with monitoring
software and LED signals for data communication
Applications
Information display board management
for hotels and airports
PLC control and administration
Industrial SCADA, measurement, and
monitoring systems
CNC machine management
Medical/Hospital/Healthcare industry
Factory Automation
Building Automation
Security/Entrance control systems
Time/Attendance control systems
and more...
|
|
|
|
|
Features
|
|
|
|
 |
3-in-1 RS-232/422/485 interface
and 10 Mbps Ethernet |
|
|
Supports 4- and 2-wire RS-485
with patented ADDC™ and built-in terminator |
|
|
Supports industrial 24 VDC power
input and optional Power over Serial |
|
|
Terminal block accessories for
easy RS-422/485 serial wiring |
|
|
Supports IP configuration by MAC
address |
|
|
Supports configuration store and
copy for easy deployment |
|
|
Supports Windows Native COM
driver and Linux real TTY driver |
|
|
Supports Driver, TCP
Server/Client, UDP Server/Client, Ethernet Modem, and Pair Connection
operation modes |
|
|
|
|
Specifications
|
|
|
| Hardware |
|
|
|
| |
| Interface |
|
|
|
|
|
|
| RS-232/422/485 (DIP switch selectable) |
|
|
|
|
|
|
|
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
4-wire RS-485: Tx+, Tx-, Rx+, Rx-, GND
2-wire RS-485: Data+, Data-, GND |
|
|
|
|
| |
| Performance |
|
|
|
| |
| Configuration |
|
|
|
| None, even, odd, space, mark |
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
| Operating Systems |
|
|
|
| Windows 2000/XP/2003, Windows NT, Windows95/98/ME Native
COM driver, Linux real tty driver |
|
|
|
|
| |
| Protocols |
|
|
|
| TCP, IP, UDP, Telnet, RTelnet, DHCP, ICMP |
|
|
|
|
| |
| Operation Modes |
|
|
|
| Driver Mode, TCP Server, TCP Client, UDP Server/Client,
Ethernet Modem, Pair Connection |
|
|
|
|
| |
| Management |
|
|
|
Serial console
Telnet console
NPort Management Suite for Windows
Linux Batch Configurator
NPort Manager for COM driver Monitor
Firmware upgrade for Windows
NPort Admin for Linux tty driver |
|
|
|
|
| |
| Power and Environment |
|
|
|
DC 12V to 30V
150 mA (max.) at 12V
92 mA (max.) at 24V
260 mA (max.) at 5V (Power over Serial enabled) |
|
|
|
|
|
|
|
|
|
|
|
|
|
67 x 100.4 x 22 mm (without ears)
90 x 100.4 x 22 mm (including ears) |
|
|
|
|
| 15 KV ESD (RS-232), 16 KV ESD (RS-422/485) |
|
|
|
|
|
|
|
| FCC B, CE B, UL, CUL, TÜV |
|
|
|
|
| |
|
|
|
| |
|
|
| 1
port RS-232/422/485 universal serial device server |
|
|
|
| 1
port RS-232/422/485 universal serial device server |
|
|
|
|
NPort Documentation and Software
CD-ROM
Power Adaptor
Quick Installation Guide
|
|
|
|
| |
|
|
|
|
| Male
DB25 to female DB9 RS-232 cable; 30 cm |
|
|
|
| Male
DB25 to male DB9 RS-232 cable; 30 cm |
|
|
|
| DB25
terminal block kit for RS-422/485 |
|
|
|
| 35
mm DIN-Rail Kit with 4 screws |
|
|
|
| Male
DB25 DIN-Rail Wiring Terminal |
|
|
|
|
|
