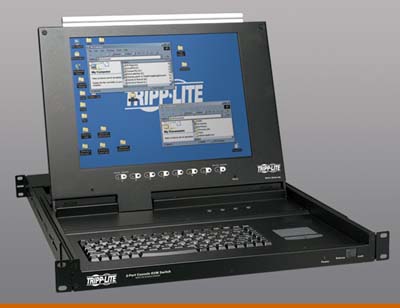

MODEL- B020-008           VENDOR- TRIPPLITE

FEATURES- 8-Port NetDirector 1U Rackmount Console KVM Switch
       Tripp Lites 8-port KVM Console Switch is the optimal solution for
        controlling multiple computers from one keyboard, mouse and
        monitor. This single unit combines an 8 port KVM switch, keyboard,
        15" LCD monitor and touchpad - all in a mere 1U of rack space.
       Stores neatly in the rack, pulls out when needed. Control up to 504
        computers from this single console by daisy-chaining additional 16
        port KVM switches (model B022-016). Easily switch ports using the
        touchpad with On Screen Display (OSD) or by using the keyboard "hot
        key" functions. In addition to controlling PS/2 systems, you can
        also control Sun and USB systems when using the appropriate
        adapter. Works on all operating systems.
    Includes Port KVM Switch, AC power adapter, Instruction manual, Flash-
      upgrade cable, B015-000 USB to PS/2 adapter.
* Control multiple computers from one keyboard, mouse, and monitor.
* Combines an 8 port KVM switch, keyboard, 15" LCD monitor and touchpad in
  a 1U rack-mount drawer.
* Daisy-chain multiple 16 port KVM switches (Model B022-016) in order to
  control up to 504 computers.
* Does not require software or complicated set-up procedures.
* Select a port by using using the On Screen Display (OSD) and the touchpad
  or by using the keyboard "hot key" functions.
* Offers autoscan feature.
* Multi-level password security to ensure only authorized people have
  access to the connected computers.
* 2 LEDs per port; one indicates when the computer is connected & on, the
  other indicates when the computer has been selected.
* Sun and USB compatibility by connecting appropriate Tripp Lite console
  converter or adapter.
* Flash upgradeable
* Hot pluggable -- add or remove computers without having to power down the
  switch.
* Auto-sensing of station position on daisy chained installations -- no
  need for manual DIP switch setting -- front panel LED indicates station
  position.
* Port names automatically reconfigured when station sequence is changed.
* Console detaches from the switch chassis for easy maintenance.
* 15" LCD display supports high XGA resolutions of up to 1024 x 768 with
  250cd/m(sq) brightness.

  -- SPECIFICATIONs ----------------------------------------
CONNECTORs- ( 1) DB-25 (Male) port
            ( 1) RJ-11 (female) port
            (16) HD-15 (female) ports
OPTIONS   - P774006     6-ft. PS/2 (3-in-1) KVM Cable Kit
            P774010    10-ft. PS/2 (3-in-1) KVM Cable Kit
            P774015    15-ft. PS/2 (3-in-1) KVM Cable Kit
            P772002     2-ft. KVM Daisychain Cable for B020-016 & B022-016
            P772006     6-ft. KVM Daisychain Cable for B020-016 & B022-016
            B015000     KVM Converter USB to PS/2
            B011000     SUN Console Converter to Support SUN Microsystems
                         Computer
            U218000R    USB to PS/2 Adapter for Mac or Sun Applications
            B022016     16-Port KVM Switch Expansion Unit
REQUIRES  - PS/2 mouse (or a USB mouse with USB-to-PS/2 adapter)
            PS/2 keyboard (or a USB or AT keyboard with a PS/2 adapter)
            PS/2 computer (or a Mac, Sun or USB computer with appropriate
             adapter).
            P774-006 or P774-010 or P774-015 KVM cable kit per port.
