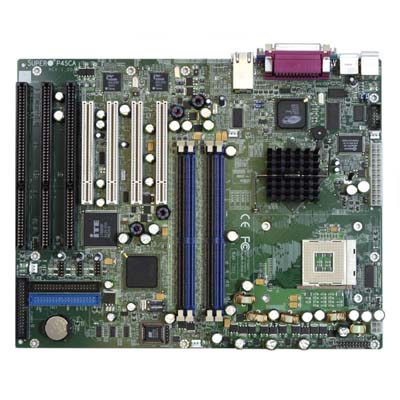

MODEL- P4SCA               VENDOR- SUPER MICRO

FEATURES- Super P4SCA Intel E7210 chipset Motherboard
       ATX form factor Motherboard with Intel E7210 chipset supports
        800/533/400 MHz Front Side Bus.
       Accepts Single Intel 478-pin Pentium 4 and Celeron processors up to
        3.06 GHz with Hyper-Threading.
       Supports up to 4GB of system memory.
       On-board SerialATA IDE, Gigabit LAN and ATI RageXL Video.
  Includes mainboard, One CPU retention kit, One ATA 66/100 ribbon cable
    for IDE devices, Two Serial-ATA cables, One COM port cable, One USB
    4-port cable, One floppy ribbon cable, One I/O shield , One User's
    manual, One BIOS/drivers CD.

  -- SPECIFICATIONs --------------------------------------
PROCESSOR - Supports single Intel 478-pin Pentium 4 processors up to
             3.06 GHz with Hyper-Threading.
            Supports single Intel 478-pin Celeron processors up to 2.4 GHz.
            All CPUs must be of 0.13 micron technology.
            800/533/400 MHz Front Side Bus
BIOS      - 4Mb Flash ROM
            Supports ACPI (Advanced Configuration and Power Interface) and
             APM (Advanced Power Management).
            Slow blinking LED for Sleep State indicator
            Main switch override mechanism. Power-up mode control upon
             recovery from AC power loss.
            PC Health Monitoring protects your system from problems even
             before they occur.
            DMI support
            External modem remote ring-on when system is in Soft-Off state.
            Hardware BIOS virus protection.
CHIPSET   - Intel E7210
MEMORY    - Supports up to 4 GB of 400/333/266 ECC or non-ECC unbuffered DDR
             SDRAM.
SLOTS     - (4) 32-bit PCI bus mastering slots, 33MHz
            (3) 16-bit ISA slots
AUDIO     - None
VIDEO     - ATI Rage XL SVGA 8MB PCI video controller
ETHERNET  - Intel Gigabit Ethernet controller
SERIAL ATA- Intel ICH5-R SATA controller supporting (2) SATA connectors for
             two drives (RAID 0) (Windows XP support only)
PCI IDE   - Dual Ultra DMA Bus Master with 100MB/s Burst data transfer rate
             supports UDMA Mode 5 PIO Mode 4, ATAPI.
I/O PORTS - (2) USB 2.0/1.1 ports
                (3) USB headers supports up to 6 additional USB 2.0/1.1
                    ports for a maximum throughput of 480Mbps.
            (2) PS/2 ports for keyboard and mouse
            (1) Serial port (UART 16550 compatible)
            (1) Parallel port (ECP/EPP)
            (1) Infrared header
            (1) Floppy port
PC HEALTH- Monitoring the voltages of the CPU core and the status of system
            power supply (+3.3V, + 5V, + 12V).
           CPU/chassis temperature monitoring
           CPU overheat LED header
           System resource alert
           Chassis intrusion detection (through LDCM)
           Support for system management software (LDCM)
MISC.   - Suspend to RAM (STR): All tasks are stored in RAM and can be
            resumed within 10 seconds from the minimum power consuming
            suspend mode.
          Wake-on-LAN allows for remote network management and
            configuration of the PC, even in off-hours when the PC is
            turned off. This reduces the complexity of managing a network.
          On-board 4-phase switching power regulator supports CPU core
             voltages from 1.1-1.65 volts.
          (4) 3-pin fan headers w/ tachometer monitoring on 3 fan (for CPU,
             chassis).
          Keyboard wake-up from Soft-off
          Connector for LED overheat indicator
          Optional CPU overclocking
          Intel PAT (Performance Acceleration Technology)
          CPU thermal trip support for processor protection
          +5V standby alert LED
          SuperO Doctor II system monitoring
          Watch Dog
          Internal/external modem ring-on
          Control of power-on mode for recovery from AC power loss
          One WOL (Wake-On-LAN) connector
          One chassis intrusion connector
COMPATIBLE- Works with these Chassis:
               SC811-IDEP4, SC742i-300, SC733i-300, SC762-420
POWER- To ensure system stability, a 300W (min.) ATX 12V power supply (with
        a 4 pin + 12V power connector) is required.
SIZE - ATX 12" x 9.5"    ATX with PC99 color-coded double-deck I/O.
