Product Description:
General Manufactures Description Page
Description
|

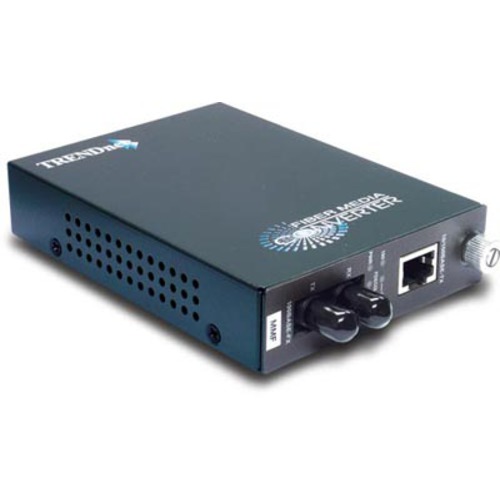

| TRENDnet's TFC-110 series Fiber
Media Converter transforms 10/100Base-TX UTP/STP media to 100Base-FX
media and vice versa. The 10/100Base-TX port auto-sense 10 or 100Mbps
connection speed, auto-negotiates half-/full-duplex mode, and
auto-selects MDI-X / MDI-II media type. This converter will give your
Switch/Hub the ability to interface with fiber connection over a
distance up to 2 km. With the optional 16-slot EIA-19" rack-mount
chassis; the TFC series converters are the perfect solutions for
various fiber media conversions for your network. |
Manufacturers Part Number
|
| TFC-110MST |
| Features |
- Compliant with IEEE 802.3 10Base-T and IEEE 802.3u
100Base-TX / 100Base-FX standards
- One 10/100Base-TX auto-negotiation RJ-45 port
- Auto-negotiation 10/100Mbps connection speed and
Half/Full-duplex mode on TX port
- Auto MDIX for 10/100Base-TX port
- One 100Mbps fiber port with Multi-mode ST-Type Connector
- Half / Full-Duplex mode selector on Fiber port
- Status LED indicators for Power, Link/Activity,
Full-Duplex, and Speed
- Wall-Mountable
- Optional 19” system chassis with redundant power supply
(TFC-1600), holds up to 16 TFC series Media Converters
- 5-year Manufacture Warranty
|
| Specifications |
| Hardware |
| Standards: |
IEEE802.3 10Base-T, IEEE 802.3u
100Base-TX and 100Base-FX |
| Supported Frame Size: |
Standard Ethernet up to 1522-Byte |
| Network Media: |
- 100Base-TX: Cat. 5, EIA/TIA-568 100-ohm UTP/STP, up
to 100 meters.
- 100Base-FX: Multi-Mode fiber optic cable 50/125 or
62.5/125 µm, up to 2 Km.
|
| Wavelength: |
1300nm |
| Protocol: |
CSMA/CD |
| Ports: |
- 1 x 10/100Base-TX
- 1 x 100Base-FX
|
| Data Transfer Rate: |
100Mbps (Half-Duplex), 200Mbps
(Full-Duplex) |
| Diagnostic LEDs: |
Power, Link/Activity, Full-Duplex, and
Speed |
| Power Adapter: |
7.5VDC, 1.5A (7.2 watts max.) |
| Temperature: |
- Operating: 0° ~ 40° C (32° ~ 104° F)
- Storage: -25° ~ 70° C (-13° ~ 158° F)
|
| Humidity: |
- Operating: 10% ~ 90%
- Storage: 5% ~ 90% (non-condensing)
|
|
|
