| Manufacturer |
D-Link Systems, Inc. |
| Manufacturer Part Number |
DP-301P+ |
| Manufacturer Website Address |
www.dlink.com |
| Product Name |

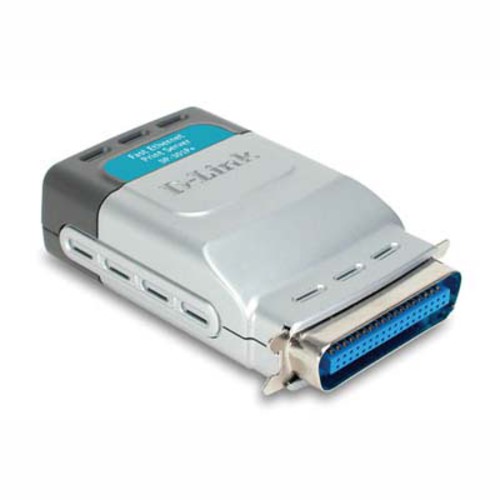

DP-301P+ Fast Ethernet Print Server |
| Marketing Information |
The
DP-301P+ is a great alternative to software-based printer sharing. The
DP-301P+ eliminates the need to have your printer connected to a host
computer. With the DP-301P+, everyone on your network can be sure that
their printing jobs go through at any time. Documents also print faster
from the DP-301P+ than from software-based printer sharing solutions.
|
| Package Type |
Retail |
|
| Interfaces/Ports |
1 x RJ-45 10/100Base-TX Network
1 x 36-pin Centronics Parallel Printer
|
|
| Connectivity Media |
Twisted Pair 10/100Base-TX |
| Data Transfer Rate |
10Mbps Ethernet
100Mbps Fast Ethernet
|
|
| Management |
SNMP
MIB-II (RFC 1213)
Telnet
|
| Protocols |
TCP/IP
NetBEUI
AppleTalk
EtherTalk
BootP
SNMP
Telnet
TFTP
FTP
LPD
RARP
DHCP
|
|
| Status Indicators |
Power
Link/Activity
LPT
|
|
| Input Voltage |
5 V DC Device
110 V ACto 220 V AC ±10% Power Supply
|
| Input Current |
2.5 A |
| Frequency |
50 Hz or 60 Hz |
|
| Temperature |
0 °C (32 °F) to 50 °C (122
°F) Operating
-25 °C (-13 °F) to 55 °C (131 °F) Storage
|
| Humidity |
5 to 95% Non-condensing |
|
| Form Factor |
External |
| Dimensions |
1.02" Height x 2.2" Width x 3.54" Depth |
| Shipping Dimensions |
3" Height x 6" Width x 9" Depth |
| Weight |
0.32 lb |
| Shipping Weight |
1.04 lb |
|
| Additional Information |
Convenient Printer Sharing
Centronics Port for Direct Printer Connection
Web-based Set-up
Compact & Portable
|
| Certifications & Standards |
IEEE 802.2
IEEE 802.3
IEEE 802.3u
IEEE 1284
|
|
| Standard Warranty |
1 Year(s) |
