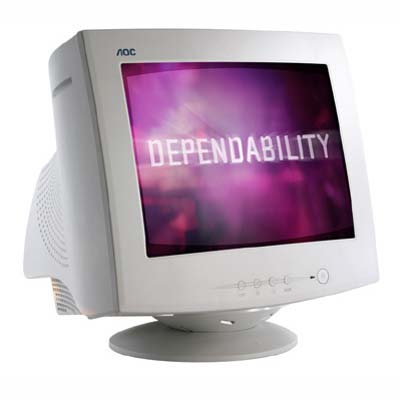

MODEL- CT500G             VENDOR- AOC INTERNATIONAL

FEATURES- 15" CRT Monitor- Beige
       Designed for the home user, the CT500G offers a combination of size,
        performance, and affordability.  Its .28mm dot pitch and 1024 x 768
        resolution delivers a crisp, clear display that is rare in
        affordable monitors.
       5 Factory Pre-set and 15 User Programmable modes.

  -- SPECIFICATIONs ---------------------------------------
DISPLAY      - 15" (13.8" viewable diagonal)
RESOLUTION   - 1024 x 768 @ 60Hz max.
                800 x 600 @ 60/72/75/85 Hz    720 x 400 @ 70Hz
                640 x 350 @ 70 Hz             640 x 480 @ 60/72/75/85 Hz
DOT PITCH    - 0.28mm (diagonal), 0.24mm (horizontal)
SIGNAL       - Input Video: 0.7Vp-p, RGB Analog
                     Sync : TTL Level
                 H/V Sync.: Positive/Negative
FREQUENCY    - Horizontal: 30 ~ 56 kHz
                 Vertical: 50 ~ 120 Hz
BANDWIDTH    - 65MHz
CONNECTOR    - (1) 15-pin D-sub Male (attached)
CONTROLS     -
  Front Panel  : Power, Menu, Contrast/Right, Brightness/Left, Exit
  OSD Function : Contrast, Brightness, H-size, H-center, V-size, V-center,
                 Zoom, Pincushion, Pin-balance, Trapezoid, Rotation, 6500K,
                 9300K, User Color, Degaussing, Moire Reduce, Recall, Exit.
  OSD Languages: English, German, French, Spanish, Italian, Portuguese.
COMPATIBLE   - VESA, XGA, SVGA, VGA
               Mac equipped with VGA port
AUDIO        - None
ENVIRONMENTAL- Temperature: 32 ~ 104 degrees F
               Humidity   : 10 ~ 85 % (non-condensing)
APPROVALS    - UL, FCC, FDA, CSA, CE, EPA Energy Star
MISC.        - VESA DDC1/2B
POWER- Universal 100 ~ 264 VAC, 50/60Hz.
       Consumption: < 75W max., standby 15W, off 5W
SIZE - 14.2"w x 14.3"h x 15.2"d          WT.- 25.3 lbs.
