| Manufacturer |
Belkin Corporation. |
| Manufacturer Part Number |
F1DK102U |
| Manufacturer Website Address |
www.belkin.com |
| Product Name |

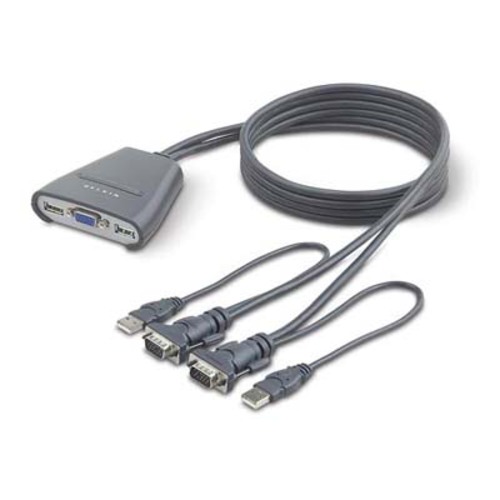

2-Port KVM Switch with Built-In Cabling |
| Marketing Information |
This
Switch provides an affordable KVM solution that saves workspace while
giving you control of two USB computers from one console. Its compact
design-with 8-foot, built-in cabling-saves you time on installation,
space on your desktop, and money you don't have to spend on cables and
peripherals. The Switch includes such features as a manual port
selector and software that makes switching ports easy. The unit
supports high-quality video resolution of up to 2048x1536 through
built-in, Belkin coaxial VGA cabling.
|
| Product Type |
KVM Switch |
|
| Number of Computers |
2 |
| Number of Users |
1 x Local User |
| Video Signal |
VGA
SVGA
MultiSync
XGA
|
| Graphics Resolution |
2048 x 1536 @ 65Hz Maximum |
| Operating Range |
8 ft |
| Cable Length |
8ft Built-in |
| Platform Support |
PC
Mac
|
|
| User/Console Ports |
1 x 4-pin Type A Keyboard
1 x 4-pin Type A Mouse
1 x 15-pin D-Sub (HD-15) VGA
|
| Computer Ports |
2 x 4-pin Type A
2 x 15-pin D-Sub (HD-15) VGA
|
|
| Temperature |
32 °F (0 °C) to 104 °F (40
°C) Operating
-4 °F (-20 °C) to 140 °F (60 °C) Storage
|
| Humidity |
0 to 80% Non-condensing Relative Humidity |
|
| Dimensions |
1.08" Height x 3.22" Width x 3.19" Depth |
| Shipping Dimensions |
3" Height x 9" Width x 11" Depth |
| Weight |
1.2 lb |
| Shipping Weight |
1.48 lb |
|
| Package Contents |
2-Port KVM Switch with Built-In Cabling
User Manual
Quick Installation Guide
Registration Card
|
| Additional Information |
Offers a complete compact solution with built-in cables
Features a manual port selector
Requires no power supply
Features LED indicators
Requires no additional cables
Mac OS X v10.x supports manual switching only
|
| Compatibility |
MacOS X 10.x or higher
Microsoft Windows 2000 / XP / Me
|
| Certifications & Standards |
FCC Part 15 \t
\tCE
\t
- Emissions Standard EN55022
- Immunity Standard EN55024
- LVP EN61000-3-2
- EN61000-3-3
\tICES Class B
\t
- Canadian ICES-003
- NMB-003
|
| Software Included |
Includes switching software (for Windows OS only)
|
|
| Standard Warranty |
3 Year(s) Limited |
| Parts Warranty/Labor |
3 Year(s) |
