Product Description:
| Marketing Description: The four-port MiniView Micro Audio KVM
switch from IOGear is a simple solution for those with more PCs than
hands. Use one keyboard, one monitor and one mouse to control four PCs
or Macintosh systems, and share the multimedia speakers among them.
This self-powered KVM switch features mouse & keyboard emulation to
ensure smooth operation, as well as support for Plug-n-Play monitors
and most wheel mice. IOGear's patented VSE Video Signal Enhancement
technology provides rich, 32-bit color at resolutions up to 2048 x
1536. With KVM cables (6' long) molded into the unit, all you need to
do is to plug it into your computers, and you've got a complete KVM
solution from IOGear. |
| Product Description |

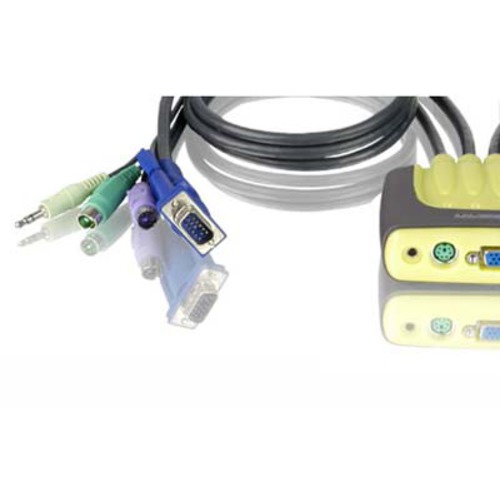

IOGear MiniView Micro Audio KVM Switch GCS614A - KVM /
audio switch - 4 ports |
| Device Type |
KVM / audio switch |
| Form Factor |
External |
| Dimensions (WxDxH) |
2.8 in x 3.5 in x 1 in |
| Ports Qty |
4 |
| KVM Users Qty |
1 local user |
| Manufacturer Warranty |
3 years warranty |
| General |
| Device Type |
KVM / audio switch |
| Enclosure Type |
External |
| Width |
2.8 in |
| Depth |
3.5 in |
| Height |
1 in |
| Networking |
| Ports Qty |
4 |
| KVM |
| KVM Local Users Qty |
1 local user |
| Max Resolution |
2048 x 1536 |
| Expansion / Connectivity |
| Interfaces |
4 x keyboard - generic - 6 pin mini-DIN
(PS/2 style)
4 x mouse - generic - 6 pin mini-DIN (PS/2 style)
4 x display / video - VGA - 15 pin HD D-Sub (HD-15)
4 x audio - mini-phone stereo 3.5 mm |
| Connections |
1 x keyboard - generic - 6 pin mini-DIN
(PS/2 style)
1 x mouse - generic - 6 pin mini-DIN (PS/2 style)
1 x display / video - generic - 15 pin HD D-Sub (HD-15)
1 x audio - mini-phone stereo 3.5 mm |
| Miscellaneous |
| Cables Included |
4 x keyboard / mouse / video / audio cable
- 6 ft |
| Compliant Standards |
DDC-2B |
| Manufacturer Warranty |
| Service & Support |
3 years warranty |
| Service & Support Details |
Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
32 °F |
| Max Operating Temperature |
122 °F |
| Humidity Range Operating |
0 - 80% |
|
|
