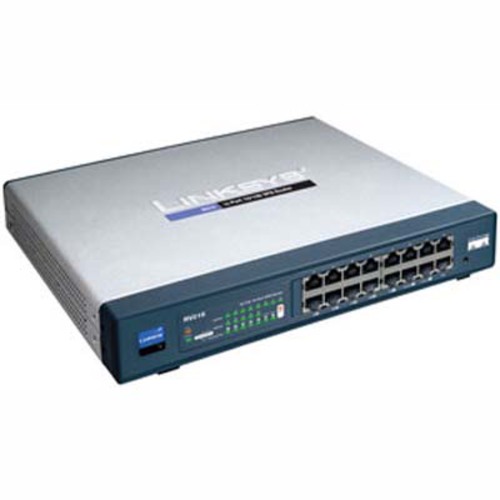

MODEL- RV016              VENDOR- LINKSYS

FEATURES- 10/100 16-Port VPN Router
       The Linksys 10/100 16-Port VPN Router is an advanced Internet-
        sharing network solution for your small business needs. Like any
        router, it lets multiple computers in your office share an Internet
        connection, but the 16 ports on this Router feature unprecedented
        versatility. Two are dedicated Internet ports that let you connect
        a second Internet line as a backup to ensure that you are never
        disconnected. Or, you can use both Internet ports at the same time,
        and let the router balance your office's requirements between them
        for maximum bandwidth efficiency.
       Not enough? Up to five of the thirteen full-duplex switched 10/100
        Ethernet ports can be reconfigured as Internet ports, for an up to
        seven-port failover or load balanced redundancy! Finally, a
        dedicated DMZ port gives you a publicly accessible channel so you
        can set up a web or FTP server, unimpeded by the powerful security
        features of the Router.
       The Virtual Private Network (VPN) capability creates encrypted
        "tunnels" through the Internet, allowing up to 50 remote office or
        traveling users to securely connect into your office network from
        off-site. Users connecting through a VPN tunnel are attached to
        your company's network -- with secure access to files, e-mail, and
        your intranet -- just as if they were in the building. You can also
        use the VPN capability to allow users on your small office network
        to securely connect out to a corporate network.
       The 10/100 16-Port VPN Router can serve as a DHCP Server, and has a
        powerful SPI firewall to protect your PCs against intruders and
        most known Internet attacks. It can be configured to filter
        internal users' access to the Internet, and has IP address
        filtering so you can specify exactly who has access to your
        network. Configuration is a snap with the web browser-based
        configuration utility.
       As the heart of your small office network, the connection-redundant
        Linksys 10/100 16-Port VPN Router gives you the connection
        reliability your business needs.
    Includes Router, AC power cable, Setup CD with User guide in PDF
      format, Registration card, Rack mount kit.
* Stateful Packet Inspection Firewall for maximum security.
* 7 WAN ports for load balanced connectivity to the Internet.
* 13-Port 10/100 Switch supports Auto-MDI/MDIX and up to 200Mbps of
  throughput per port.
* IP filtering allows for restricted access to the Internet and other
  network resources.
* Full IPSec Virtual Private Network (VPN) Capability using DES and 3DES
  Encryption Algorithms.
* Support for MD5 and SHA Authentications Algorithms.
* Create up to 50 simultaneous IPSec VPN Tunnels.
* Management via Web, Telnet, SNMP, and Setup Wizards make setup easy for
  Administrators.

  -- SPECIFICATIONs -------------------------------------
CONNECTORs   - (16) 10BaseT/100BaseTX/RJ45 ports
                    ( 2) 10BaseT/100BaseTX/RJ45 Internet port
                    ( 1) 10BaseT/100BaseTX/RJ45 DMZ port
BUTTONS      - Reset
CABLE TYPE   - Category 5 Ethernet
INDICATORS   - LEDs for Diagnosis, Link/Activity 1-13, Internet/Activity
                1-7, DMZ.
SECURITY     - SPI Firewall, DES and 3DES Encryption for IPSec VPN Tunnel,
                DM5 and SHA Authentication, URL Filtering.
ENVIRONMENTAL- Operating Temperature: 32 ~ 104 degrees F
               Storage Temperature  : 32 ~ 158 degrees F
               Operating Humidity   : 10 ~ 85% Non-Condensing
               Storage Humidity     : 5 ~ 90% Non-Condensing
REQUIRES - Broadband connection for Internet Connection Sharing.
          TCP/IP Protocol installed on each PC.
APPROVALS- FCC B, CE B
POWER- 3.3V 5 Amps
SIZE - 11.0" x 1.75" x 9.5"d                  WT.- 3.25 lbs.
 www.linksys.com
