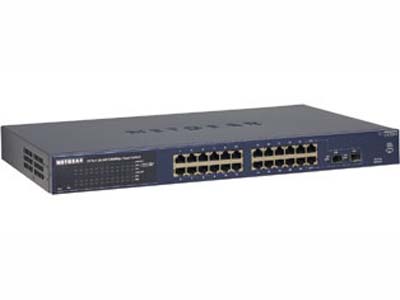

MODEL- GS724TNA           VENDOR- NETGEAR INC.

FEATURES- 24-port Gigabit Smart Switch
       Joining NETGEAR's family of Smart Switches with simple switch
        management at no extra cost, this 24-port Gigabit switch is high on
        value and capability. With 24 10/100/1000 Mbps ports, each capable
        of powering 2000 Mbps of data throughput in full-duplex mode, plus
        two optional fiber ports, it provides fast backbone and connects
        servers or power users, delivering large amounts of multimedia,
        image, and video information in no time at all.
       Ideal for combining 10, 100, and 1000 Mbps devices it delivers
        10/100/1000 automatic speed and full/half-duplex sensing plus Auto
        Uplink on every port. Two hot-swappable Small Form factor Pluggable
        (SFP) GBIC slots provide optional fiber connectivity for greater
        distance. An intuitive, web-browser interface offers simple switch
        management, making it a snap to monitor switch performance,
        configure ports, even set up trunks, VLANs, and prioritization.
   Includes 24-port Gigabit Smart Switch GS724T, Rubber footpads, Power
     cord, Rack-mount kit, Smart Switch resource CD, Smart Switch
     installation guide, Warranty/Support information card.
* High Powered
   Twenty-four 10/100/1000 ports deliver non-blocking, full-speed packet
   forwarding with 48 Gbps bandwidth migrates your network to future-proof
   functionality. Two SFP GBIC fiber slots provide optional fiber
   connectivity for greater distance.
* Intelligent
   Smart Switch capability enables key management features for the value
   price of an unmanaged switch. Included are performance monitoring, port
   configuration, VLAN for traffic control, port trunking for increased
   bandwidth, and Class of Service (CoS) for traffic prioritization.
* Right Sized
   Ideal for growing businesses who want the benefits of management without
   the cost and complexity of a fully SNMP-capable network.
* Easygoing and Durable
   Simple to set up and simple to use for effortless network monitoring and
   troubleshooting. Made to last, this sturdy switch is housed in a 17-inch
   metal box and comes with a rack mounting kit.

  -- SPECIFICATIONs -------------------------------------
STANDARDS     - IEEE 802.3 10BASE-T
                IEEE 802.3u 100BASE-TX
                IEEE 802.3ab 1000BASE-T
                IEEE 802.3x full-duplex flow control
CONNECTORS    - (24) 10BaseT/100BaseTX/1000BaseT/RJ-45 ports
                     (Auto Uplink on all ports)
                ( 2) SFP slots (for fiber Gigabit Ethernet modules)
ADMINISTRATIVE SWITCH MANAGEMENT-
                IEEE 802.1Q Tag VLAN (Up to 64 Static VLAN groups)
                Port-based VLAN (up to 24 groups)
                IEEE 802.1p (Class of Service)
                Port-based QoS (options High/Normal)
                Port Trunking - Manual as per IEEE 802.3ad Link Aggregation
                Port Mirroring Support
                DHCP client function
                Port setting
                Web-based configuration, anywhere on the network
                Smartwizard Discovery Utility program auto discovers
                 devices (up to 254 agents/switches); set system
                 configuration to each agent.
                Configuration Backup/Restore (easy to configure more than
                 one switch).
                Password access control and Restricted IP Access List.
                Fimrware upgradeable
ACTIVE FLOW CONTROL-
                Half-duplex back-pressure control
                Full-duplex IEEE 802.3x pause frame flow control
PERFORMANCE   - Forwarding modes     : Store-and-forward
                Bandwidth            : 48 Gbps
                Network latency      : < 20  s for 64-byte frames in store-
                                         and-forward mode for 100 Mbps to
                                         100 Mbps transmission.
                Buffer memory        : 512 KB embedded memory per unit
                Address database size: 8,000 media access control (MAC)
                                       addresses per system.
                Addressing           : 48-bit MAC address
                MTBF                 :126,700 hours (~ 14 years)
INDICATORS    - LEDs per Unit: Power
                LEDs per Port: Link, Activity, Speed, Duplex

ENVIRONMENTAL - Operating temperature: 32 to 104 degrees F
                Storage temperature  : 14 ~ 158 degrees F
                Operating humidity   : 10 ~ 90% max, RH, non-condensing
                Storage humidity     : 10 ~ 95% max, RH, non-condensing
                Operating Altitude   : 10,000 feet max.
                Storage Altitude     : 10,000 feet max.
REQUIRES      - UTP Category 5 or better cables
                Network card for each PC
                Network software (e.g., Windows)
APPROVALS     - CE mark, commercial; FCC Part 15 Class A; VCCI Class A;
                 EN 55022 (CISPR 22); Class A; EN 50082-1; EN 55024;
                 C-Tick
                UL listed (UL 1950)/cUL; IEC950/EN60950
OPTIONS       - AGM731F     1000BaseFX SFP GBIC Module with LC connectors
                AGM732F     1000BaseLX SFP GBIC Module with LC connectors
POWER- 100~240VAC/50~60 Hz universal input
       Power Consumption: 40 W maximum
SIZE - 17.3"w x 1.7"h x 10.25"d                WT.- 7.1 lbs.
 www.netgear.com
