MODEL- RRAID100           VENDOR- HPT USA/HIGHPOINT TECH

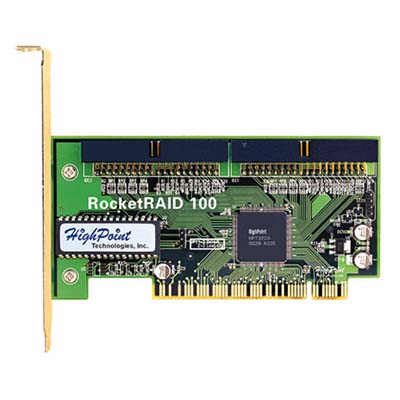

FEATURES- RocketRAID 100 2-Channel ATA100 RAID Host Controller
       The RocketRAID 100 is a dual channel IDE RAID host adapter designed
        for use with ATA100 hard disk drives. RocketRAID 100 supports
        several RAID levels including RAID 0, 1, 0/1 and JBOD.
* High-performance Data Storage and Retrieval
   The RocketRAID 100 supports high speed transfer rates up to 100MB/s, as
   well as providing parallel access to it's two, independent, ATA
   channels.  Due to the RocketRAID 100's RAID 0 capability, data storage
   and retrieval is dramatically faster than single drive systems.
* Data Security
   For RAID 1 and 0/1, the RocketRAID 100 provides disk mirroring, hot-
   spare options for automatic array-rebuilds, hot-swap support for
   swapping failed disks on the fly (works with Hot-Swap capable mobile
   racks such as Rocket Mate), and disk failure notification (audible
   alarms, visual warning messages).  These features provide a high level
   of security and data protection against hard disk failure.
* Windows-based utility
   In addition to the BIOS configuration utility, the RocketRAID 100
   includes Windows-based RAID configuration software. The software
   provides and intuitive interface, which is designed to make RAID
   management easy, even for the inexperienced user.

  -- SPECIFICATIONs -------------------------------------
HOST SIDE INTERFACE    - 32-bit 33MHz PCI
DISK INTERFACE         - Ultra DMA/ATA 100
RAID CHIPSET           - HighPoint HPT370A
PCB                    - 4 layers
NUMBER OF IDE CHANNELS - 2 Channels
DISK CONNECTION        - 4 disks (mexium)
RAID LEVEL SUPPORT     - RAID 0, 1, 0/1, JBOD
O/S SUPPORT            - Windows 98/ME/NT 4.0/2K/XP/2003
                         Linux (SuSE, Red Hat, Caldera, Turbo), and FreeBSD
MAX. DATA THROUGHPUT   - 100MB/s per channel & 200MB/s burst rate on two
                          channels in parallel.
SUSTAINED DATA TRANSFER- RAID 0 : 60MB/s to 70MB/s
RAID MANAGEMENT TOOL   - RAID Configuration and Management
GUI FUNCTION           - RAID Configuration and Management (compatible with
                          BIOS).
MISC. FEATURES         - Bootable disk or disk array support.
                         Disk hot spare for automatic mirror rebuilding.
                         Hot-swapping failed hard drives.
                         Device status monitoring and error alarm mechanism
                         Event Log for trouble shooting
