| Manufacturer |
Startech Computer Products |
| Manufacturer Part Number |
ET90110ST |
| Manufacturer Website Address |
www.startech.com |
| Product Name |

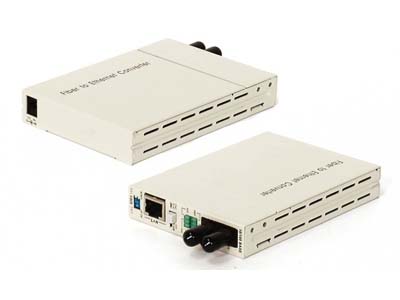

10/100 Mbps RJ45 to Multimode ST Fiber Media
Converter |
| Marketing Information |
StarTech.com's high-speed ET90110ST media converters are
engineered to make fiber connections simple and reliable for even the
most demanding network specialists. StarTech.com's ET90110ST is the
perfect solution for connecting buildings to main networks.
|
| Product Type |
Media Converter |
|
| Interfaces/Ports |
1 x RJ-45 10/100Base-TX Auto MDI/MDI-X
1 x ST 100Base-FX
|
|
| Connectivity Media |
10/100Base-TX UTP
100Base-FX 1300 nm Multimode Fiber
|
| Supported Distance |
1.24 mi Maximum Multimode Fiber |
| Data Transfer Rate |
100Mbps Fast Ethernet Half-duplex
10Mbps Ethernet
200Mbps Fast Ethernet Full-duplex
|
|
| Protocols |
Ethernet
Fast Ethernet
|
|
| Status Indicators |
Led Indicators:
1 Power indicator
1 Fiber mode display indicator
1 Fiber link indicator
2 LAN mode indicators
1 Ethernet link indicator
|
|
| Input Voltage |
9 V DC |
| Input Current |
1 A |
|
| Temperature |
32 °F (0 °C) to 158 °F (70 °C)
Operating |
| Humidity |
0 to 90% Operating |
|
| Dimensions |
0.78" Height x 3.37" Width x 4.8" Depth |
| Shipping Dimensions |
3" Height x 7.5" Width x 9.25" Depth |
| Weight |
1.95 lb - includes adapter |
| Shipping Weight |
1.96 lb |
|
| Additional Information |
Heavy-Duty power supply which is
engineered to withstand the most challenging conditions and
environments
Full wire speed of 148,800 packet
per second throughput prevents bottlenecks
Easy installation and setup in
seconds
It's compact design and weight
makes it portable and unobtrusive to carry
Connect remote areas of large
buildings to the main network
Connect 2 buildings that are on
the same campus
|
| Compatibility |
Guaranteed compatibility with
3Com, Cisco, Lucent, and Nortel
|
| Certifications & Standards |
IEEE 802.3u
IEEE 802.3 Emissions:
FCC Class A
CE Class A & CISPR Class A
|
|
| Standard Warranty |
1 Year(s) Limited |
