| Manufacturer |
Startech Computer Products |
| Manufacturer Part Number |
SV831HD |
| Manufacturer Website Address |
www.startech.com |
| Product Line |
StarView |
| Product Name |

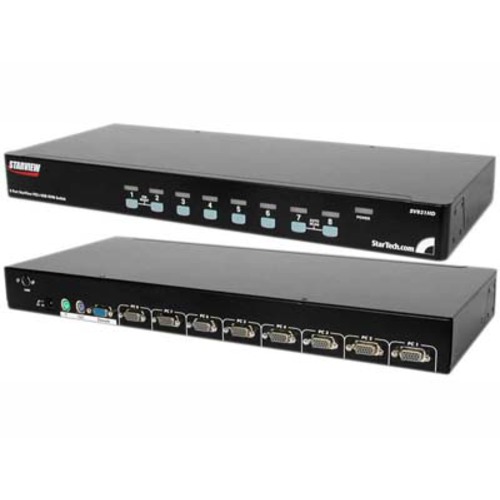

StarView SV831HD KVM Switch |
| Marketing Information |
Manage all your computers from one convenient location with a
StarTech.com KVM switch. This versatile hybrid KVM switch let you
connect 8 USB or PS/2 computers using only one PS/2 keyboard, mouse,
and monitor. Convenient pushbutton and hot-key commands allow for
quick, reliable switching between your systems. Manual and Auto scan
modes are supported.
Our slim design needs only 1U in your cabinet and uses rear
cable connections for maximum space efficiency. Multiple SV831HD units
can be cascaded to support up to 64 computers
|
| Product Type |
KVM Switch |
|
| Number of Computers |
8 |
| Number of Users |
1 x Local User |
| Video Signal |
VGA |
| Graphics Resolution |
1920 x 1440 |
| Scan Intervals |
3, 8, 15, 30 seconds
|
| Security |
Login authentication restricts
access to authorized users
|
| Platform Support |
PC
Mac
Sun
|
|
| User/Console Ports |
1 x 6-pin mini-DIN (PS/2 Style) Female Keyboard
1 x 6-pin mini-DIN (PS/2 Style) Female Mouse
1 x 15-pin D-Sub (HD-15) Female VGA
|
| Computer Ports |
8 x 15-pin D-Sub (HD-15) Female |
|
| Input Voltage |
9 V DC |
| Input Current |
600mA |
|
| Form Factor |
1U 19" Rack-mountable |
| Dimensions |
1.7" Height x 17.2" Width x 7.0" Depth |
| Shipping Dimensions |
3.6" Height x 10.5" Width x 23.3" Depth |
| Shipping Weight |
9.71 lb Approximate |
|
| Package Contents |
1 x StarView KVM Switch
1 x power adapter
|
| Additional Information |
Universal KVM switch controls up
to 64 computers by cascading 8 additional KVM switches
Hot-pluggable feature allow
computers to be added or removed without shutting down
Auto Scan Mode lets you switch
between computers for easy monitoring
Each computer name can be defined
via the OSD menu
Front panel buttons and port
status lights allow for easy selection and status monitoring
Uses StarTech.com tangle-fee KVM
cables
No software or drivers required
DDC2B compatible
|
| System Requirement |
1 x PS/2 mouse (6-pin mini-DIN
male connector)
1 x PS/2 keyboard (6-pin mini-DIN
male connector)
1 x HD-15 monitor (Male connector)
2-in-1 USB KVM cables or 3-in-1
PS/2 KVM
|
| Compatibility |
Supports IntelliMouse (Pro)
|
| Certifications & Standards |
FCC Part 15
CE
|
|
| Standard Warranty |
3 Year(s) |
| Parts Warranty/Labor |
3 Year(s) |
