MODEL- SV1631HD        VENDOR- STARTECH.COM LTD

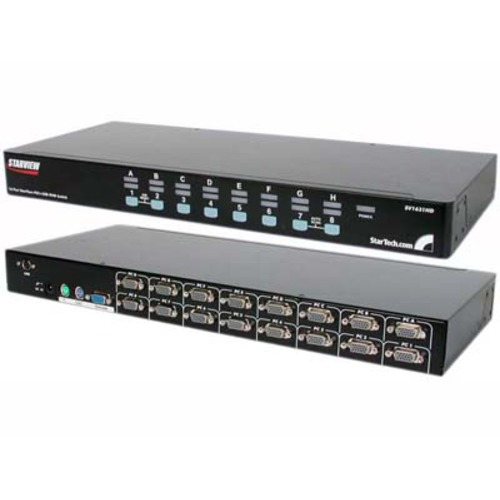

FEATURES- 16 Port StarView Multi-Platform USB+PS2 KVM Switch with OSD
       Manage all your computers from one convenient location with a
        StarTech.com KVM switch. This versatile hybrid KVM switch let you
        connect 8 USB or PS/2 computers using only one PS/2 keyboard,
        mouse, and monitor. Convenient pushbutton and hot-key commands
        allow for quick, reliable switching between your systems. Manual
        and Auto scan modes are supported.
       Our slim design needs only 1U in your cabinet and uses rear cable
        connections for maximum space efficiency.
       Multiple SV1631HD units can be cascaded to support up to 136
        computers.
* Compatible with Windows, Macintosh, and Linux.
* Datacenter computer control
* Manufacturing line computer control
* PC test/burn-in computer control
* Co-location/ISP computer control
* Server farms
* Supports PCs with USB or PS/2 keyboard and mouse connectors.
* Universal KVM switch controls up to 16 computers directly and up to 136
  computers by cascading 8 additional KVM switches.
* Compact 1U rack height takes up very little cabinet or rack space.
* Hot-pluggable feature allow computers to be added or removed without
  shutting down.
* Works with PC, Mac and Sun Servers and Systems.
* Auto Scan Mode lets you switch between computers for easy monitoring.
* Supports IntelliMouse (Pro)
* Each computer name can be defined via the OSD menu.
* Front panel buttons and port status lights allow for easy selection and
  status monitoring.
* Uses StarTech.com tangle-fee KVM cables
* Operating system independent
* No software or drivers required
* Login authentication restricts access to authorized users
* DDC2B compatible
* Plug and Play compliant

 -- SPECIFICATIONS ------------------------------------
USER PORTS:               1
COMPUTER PORT CONNECTORS: (16) HD-15 (Female)
CONSOLE PORT CONNECTORS:  (1) PS/2 Keyboard 6-pin Mini-Din (Female)
                          (1) PS/2 Mouse 6-pin Mini-Din (Female)
                          (1) HD-15 (Female)
CHANNEL SELECTOR:         Push Button & Hotkeys
POWER:                    9V 600mA DC Power Adapter
VGA RESOLUTION:           1920 x 1440 pixels
AUTO SCAN INTERVAL:       3,8,15 & 30 seconds
LOGIN PASSWORD:           4 character/computer
OSD SUPPORT:              Yes
COMPUTER NAME ENTRY:      14 Characters
CABLE LENGTH:             100 ft. for Console Connection
                          100 ft. for PS/2 Computers 15ft for USB Computers
ENCLOSURE:                Metal
LED DISPLAY:              (16) Active PCs (Green LED)
                          (16) Selected PCs (Red LED)
SAFETY STANDARDS:         FCC & CE
SIZE:                     17.2" x 1.7" x 7.0"
