Product Description:
| Product Description |

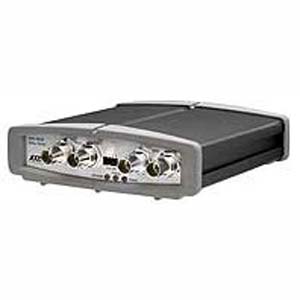

Axis Video Server 241Q - video server |
| Device Type |
Video server |
| Enclosure Type |
External |
| Dimensions (WxDxH) |
5.5 in x 6.1 in x 1.7 in |
| Weight |
1.1 lbs |
| Processor |
1 x Axis ETRAX 100LX |
| RAM Installed ( Max ) |
64 MB |
| Flash Memory Installed (Max) |
8 MB flash |
| Data Link Protocol |
Ethernet, Fast Ethernet |
| Network / Transport Protocol |
TCP/IP |
| Remote Management Protocol |
HTTP |
| Features |
Auto-sensing per device, DHCP support, BOOTP support |
| OS Required |
UNIX, Apple MacOS, Linux, Apple MacOS X, Microsoft Windows
98/2000/XP |
| General |
| Device Type |
Video server |
| Width |
5.5 in |
| Depth |
6.1 in |
| Height |
1.7 in |
| Weight |
1.1 lbs |
| Processor / Memory / Storage |
| Processors Installed |
1 x Axis ETRAX 100LX |
| Max Supported Qty |
1 |
| RAM Installed ( Max ) |
64 MB SDRAM |
| Flash Memory Installed (Max) |
8 MB flash |
| Networking |
| Form Factor |
External |
| Connectivity Technology |
Wired |
| Digital Video Format |
MJPEG |
| Data Transfer Rate |
100 Mbps |
| Data Link Protocol |
Ethernet, Fast Ethernet |
| Network / Transport Protocol |
TCP/IP |
| Remote Management Protocol |
HTTP |
| Status Indicators |
Power, status |
| Features |
Auto-sensing per device, DHCP support, BOOTP
support |
| Expansion / Connectivity |
| Interfaces |
1 x network - Ethernet 10Base-T/100Base-TX -
RJ-45
4 x display / video - composite video input - BNC
1 x management - RS-485 - terminal block
1 x serial - RS-232 - 9 pin D-Sub (DB-9) |
| Miscellaneous |
| Compliant Standards |
FCC Class B certified, CE, CSA, UL, C-Tick, VCCI
Class B ITE, EN 60950, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022
Class B |
| Power |
| Power Device |
Power adapter - external |
| Software / System Requirements |
| OS Required |
UNIX, Apple MacOS, Linux, Apple MacOS X,
Microsoft Windows 98/2000/XP |
| Environmental Parameters |
| Min Operating Temperature |
41 °F |
| Max Operating Temperature |
122 °F |
| Humidity Range Operating |
20 - 80% |
|
