| Manufacturer |
Startech Computer Products |
| Manufacturer Part Number |
MICATXPOW255 |
| Manufacturer Website Address |
www.startech.com |
| Product Name |

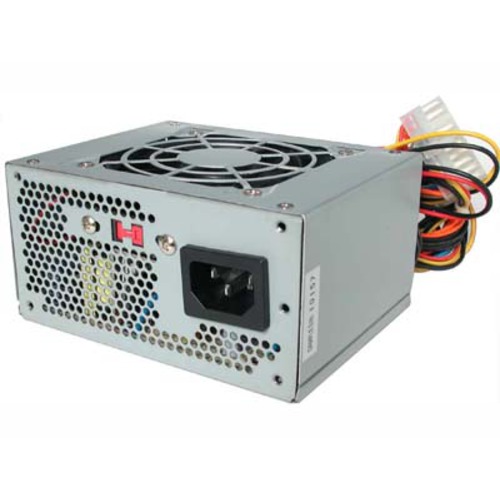

255 Watt Micro ATX power Supply |
| Marketing Information |
Need a micro ATX power supply for your compact
system? StarTech.com's 255 watt MICATXPOW255 may be the last micro
power supply you ever buy, thanks to a long-life transformer and
built-in short-circuit protection. The temperature controlled smart fan
cools your entire system while the EMI/RFI power filter reduces
noise/ripple. The MICATXPOW255 is a true quiet power supply. |
| Product Type |
MicroATX |
|
| Fans |
Sleeve Bearing Single Fan |
| Cooling |
High airflow fan delivers efficient cooling for
the entire system |
| MTBF |
100000 Hour(s) @ 25ÂșC |
|
| Input Voltage |
230V AC
115V AC
|
| Current |
0.5A @ -12V DC Output Current
0.5A @ -5V DC Output Current
2A @ 5V DC Standby Output Current
6A @ 115V AC Input Current
3A @ 230V AC Input Current
11A @ 12V DC Output Current
20.5A @ 5V DC Output Current
20A @ 3.3V DC Output Current
|
| Frequency |
50 Hz~ 60 Hz |
| Output Power |
255 W |
|
| Connectors |
3 x 4-pin LP4 Hard Drive
1 x 4-pin SP4 Floppy Drive
1 x 20-pin ATX Motherboard Adapter
1 x 4-pin Extended ATX Power 12V Plug
1 x 15-pin Serial ATA
|
|
| Form Factor |
Internal |
| Dimensions |
4.92" x 2.55" x 3.93" |
| Shipping Dimensions |
6.25" Height x 3.79" Width x 9.39" Depth |
| Shipping Weight |
2.15 lb |
|
| Package Contents |
MICATXPOW255 Power Supply
Power cord
|
| Additional Information |
ATX version 2.03 and ATX12V
complaint
Quad Protection features
include:
- Short Circuit Protection
- Over Power Protection
- Over Voltage Protection
- No Load Protection
Zinc Plated
|
| Compatibility |
Pentium II, III, 4, AMD K6 and
Athlon
|
| Certifications & Standards |
CSA
UL
TUV
CE
FCC Class B
|
|
| Standard Warranty |
2 Year(s) |
| Parts Warranty/Labor |
2 Year(s) |
