| Manufacturer |
Startech Computer Products |
| Manufacturer Part Number |
ATXPOWER250B |
| Manufacturer Website Address |
www.startech.com |
| Product Name |

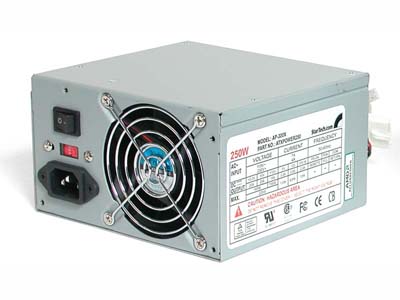

ATXPOWER 250W Power Supply |
| Marketing Information |
Instantly replace your old ATX power supply with the reliable
ATXPOWER 250W Power Supply. It may be the last computer power supply
you ever buy thanks to a long life transformer and built-in
short-circuit protection
|
| Product Type |
ATX Power Supply
ATX 12V
|
|
| Cooling |
Temperature controlled smart fan |
| MTBF |
40000 Hour(s) |
|
| Input Voltage |
115V AC
230V AC
|
| Current |
7A @ 115V AC Input Current
4A @ 230V AC Input Current
23.5A @ 5V DC Output Current
15A @ 3.3V DC Output Current
9.5A @ 12V DC Output Current
1.5A @ 5V DC Standby Output Current
0.5A @ -5V DC Output Current
0.5A @ -12V DC Output Current
|
| Frequency |
50 Hz or 60 Hz |
| Output Power |
250 W |
|
| Connectors |
4 x 4-pin LP4 Hard Drive
1 x 20-pin ATX Motherboard Adapter
1 x 4-pin SP4 Floppy Drive
|
|
| Shipping Dimensions |
18.5" Height x 17.71" Width x 6.69" Depth |
| Shipping Weight |
38.5 lb |
|
| Additional Information |
High quality connectors provide minimal resistance and
enhanced electric conductivity
Superior EMI/RFI power filtration system provides low
noise/ripple for super clean and stable power to all system components
Robust transformer powers several drives, 3D video
accelerator cards, and more
10 Piece Bulk Pack
Safety Features:
Short Circuit Protection
Over Voltage Protection
Over Temperature Protection
Over Power Protection
|
| Compatibility |
Pentium II, III and IV Processors
AMD K6, Athlon and Duron processors
|
| Certifications & Standards |
TUV
UL
CSA
CE
CB
FCC
|
|
| Standard Warranty |
2 Year(s) |
