| Manufacturer |
D-Link Systems, Inc. |
| Manufacturer Part Number |
DCS-5300 |
| Manufacturer Website Address |
www.dlink.com |
| Product Line |
SecuriCam |
| Product Series |
DCS |
| Product Name |

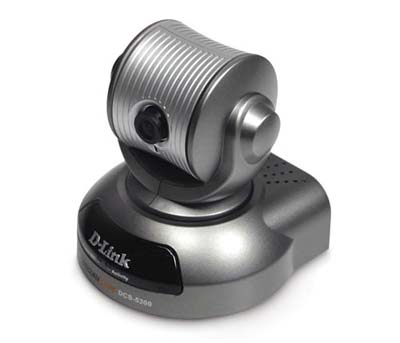

SecuriCam Network DCS-5300 Internet Camera |
| Marketing Information |
D-Link
is pleased to introduce the newest product in Internet camera
technology. Remotely watch and listen with the D-Link SecuriCam
DCS-5300 Internet Camera. The DCS-5300 Internet Camera is a full
featured surveillance system that connects to an Ethernet or Fast
Ethernet connection to provide high quality video and audio over the
Intranet or the Internet. |
| Product Type |
Surveillance/Network Camera |
|
| Sensor |
CCD (Charge Coupled Device) |
| Video Resolution |
320 x 240 @ 30 fps MPEG-4
160 x 120 @ 30 fps MPEG-4
|
| File Formats |
MPEG-4
Compressed JPEG
|
| White Balance Modes |
Automatic
|
| Illumination |
1.0 Lux |
| Color Support |
Color |
| Tilt/Swivel |
270° Swivel
90° Tilt
|
|
| Lens Type |
Fixed focus glass lens
|
| Aperture Range |
f/2.0 |
| Shutter Speed |
1/60 to 1/15000 Second(s) CCD Shutter |
| Focus Mode |
Fixed Focus |
|
| Connectivity Technology |
Cable |
| Protocols |
HTTP
TCP/IP
SMTP
FTP
Telnet
NTP
DNS
DHCP
|
|
| Status Indicators |
2 Status indicators
- \t(1) Power
- (2) POST, connection, and heartbeat
|
|
| Interfaces/Ports |
1 x RJ-45 10/100Base-TX
1 x Audio/Video
1 x Input/Output
|
|
| Input Voltage |
12 V DC |
|
| Dimensions |
4.4" Height x 4.1" Width x 4.0" Depth |
| Shipping Dimensions |
5.59" Height x 8.39" Width x 10.80" Depth |
| Weight |
12.2 oz |
| Shipping Weight |
2.14 lb |
|
| Additional Information |
CCD Sensor for Superior Quality Image
Built-In Microphone for Audio Monitoring
Built-In Motion Detection & Email Notification
1 Opto-isolated sensor input
1 relay output
External microphone input
|
| System Requirement |
Operating System: Microsoft Windows
XP, 2000, Me or 98SE
Browser: Internet Explorer 5.x or above
Viewing System Requirement Protocol: ActiveX
|
| Security |
Administrator and user group protected
Password authentication
|
| Platform Support |
PC |
|
| Standard Warranty |
1 Year(s) |
