MODEL- ROCKET100          VENDOR- SOYO COMPUTER INC

FEATURES- Dual-Channel ATA100 Disk Accelerator
       Rocket 100 is a dual-channel Ultra DMA/ATA100 disk accelerator which
        has the worlds best-selling HPT 370/370A chipset. It is completely
        backward-compatible with 33MHz PCI systems or slower Ultra ATA66/33
        drivers, and supports up to four Ultra ATA100 drives. With Rocket
        100, it makes your new, fast drives even faster under Windows
        95/98/ME/NT/2000/XP. Its storage capacity is over 137GB.
* ATA 100 Host Adapter

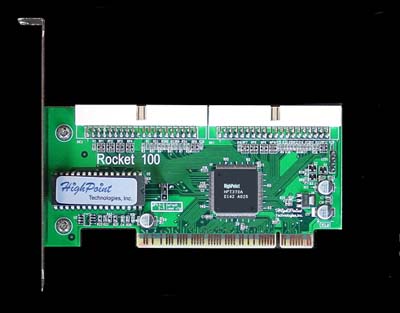

   The Rocket100 Host Adapter is a dual channel, cost-effective IDE
   controller card designed for use with ATA100 hard disk drives.
* High-performance data storage and retrieval
   The Rocket100 supports high speed transfer rates up to 100 MB/s, as well
   as providing parallel access to it's two, independent, ATA channels. The
   Rocket100's 2 ATA channels combine to support up to 4 hard disk drives.
* Support High-capacity Hard Disks
   The Rocket100 Host Adapter breaks the current interface standard's hard
   disk drive capacity limitations, and supports hard drives larger than
   137GB.
* Multiple OS Support
   The Rocket100 Host Adapter is compatible with most major operating
   systems, including DOS 5.x, Windows 3.1x, Windows 95/98, Windows ME
   (Millennium Edition), Windows NT 3,51/4.0, Windows 2000, Windows XP, and
   Linux (SuSE, Red Hat, Caldera, Turbo).

  -- SPECIFICATIONs ------------------------------------
INTERFACE/BUS  - 32-bit, 33/66 MHz PCI
DISK INTERFACE - Ultra DMA/ATA 100
CHIPSET        - HighPoint HPT370
PCB            - 4-layer
IDE CHANNELS   - 2 channels
DISK CONNECTION- 4 disks (maximum)
HARD DISKS     - Supports ATA 100 hard disk, backward compatible (ATA 66,
                  33).
O/S SUPPORT    - Windows 98/ME/NT 4.0/2K/XP/2003
                 Linux (SuSE, Red Hat, Caldera, Turbo), and FreeBSD
DATA THROUGHPUT- Maximum 100 MB/s per channel
BIOS FUNCTION  - Drive Configuration and Management
PLUG & PLAY    - YES
www.highpoint-tech.com
