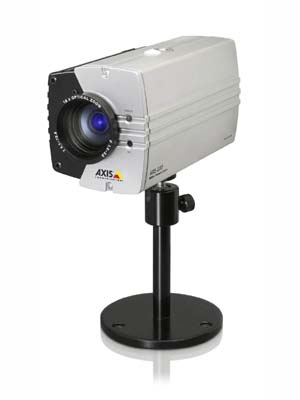

AXIS 230 MPEG-2 NETWORK CAMERA

741078_AXIS_0177014.jpg-AXIS_230_MPEG_2_NETWORK_CAMERA

Manufacturer	AXIS
Mfg. Part #	0177-014
ITEM#	264960
Unit Price	$1,903.89 (~CAD$1,899.90)
Availability	Back Order [ Get notified when product becomes available. ]
Buy

*Currency Conversion Rate: US$1.00 = CAD$0.9979

Volume	Each	Landing Price/Each
1 ~ 2	$1,903.89 (~CAD$1,899.90)	$1,913.88 or less (~CAD$1,909.87)
3 ~ 7	$1,881.85 (~CAD$1,877.90)	$1,891.84 or less (~CAD$1,887.87)
8 ~ 14	$1,859.82 (~CAD$1,855.92)	$1,869.81 or less (~CAD$1,865.89)
15 ~ 19	$1,837.78 (~CAD$1,833.93)	$1,847.77 or less (~CAD$1,843.89)
20 ~	$1,815.75 (~CAD$1,811.94)	$1,825.74 or less (~CAD$1,821.91)

INTERNATIONAL GROUND SHIPPING:
For qualified orders, we will waive the Brokerage/Handling Fee for Custom Clearance and Documentation
No other hidden fees will be collected from you when packages arrive. Guaranteed
[ Detailed Explanation ]

Direct Manufacturer Warranty Item: For any technical support, RMA service, please contact the Manufacturer directly from the date of purchase. In order to serve you better, Manufacturer requires all the service must go directly through them.

For peace of mind and to reduce your down time, check out our HOT SWAP Express Warranty.

[ View Detail Product Info ]

Product Description:

AXIS 230 MPEG-2 Network Camera

Live, full resolution MPEG-2 video over your network

The AXIS 230 MPEG-2 Network Camera provides advanced features for demanding security and surveillance applications.

The AXIS 230 delivers 30/25 frames per second of DVD-quality video and synchronized audio over IP networks. It's also an infrared-sensitive camera that is able to provide color video under light conditions, and black and white video under dark conditions. The AXIS 230 is ideal for installations that require round-the-clock, high quality video and audio, such as traffic monitoring and airport surveillance.

Other target groups that can benefit from the combination of full frame rate and DVD-quality video and audio include casinos, as well as organizations working with LAN-based education, such as hospitals and universities.

Video and audio compression with MPEG-2 enables the AXIS 230 to combine the highest quality video and audio with relatively low bandwidth consumption.

Features:

Delivers 30/25 frames per second of DVD quality video and synchronized audio over IP networks
IR-sensitive day/night camera
Powerful, 18x optical zoom lens (remotely controllable) and 12x digital zoom
Four different resolutions up to 720x576 and seven different quality levels
Built-in microphone (one-way audio from camera to viewer) and support for external audio devices
Audio level alarm (alert based on sound level picked up by the camera's microphone)
Support for multicasting over a local area network for unlimited number of simultaneous viewers
Support for third-party pan/tilt devices
Two control inputs (alarm) and one output

Optional accessories:

Wide range of application software from Axis and its Application Development Partners
Wireless connectivity with SMC2870W Wireless Bridge
No need for power outlets and electrical cabling using Power over Ethernet products
Outdoor Housing
External IR illuminators

General Information
Manufacturer	Axis Communications
Manufacturer Part Number	0177-014
Manufacturer Website Address	www.axis.com
Product Name	230 MPEG-2 Network Camera
Marketing Information	The AXIS 230 delivers 30/25 frames per second of DVD-quality video and synchronized audio over IP networks. It's also an infrared-sensitive camera that is able to provide color video under light conditions, and black and white video under dark conditions. The AXIS 230 is ideal for installations that require round-the-clock, high quality video and audio, such as traffic monitoring and airport surveillance.
Product Type	Surveillance/Network Camera
Display & Graphics
Sensor	CCD (Charge Coupled Device)
Video Resolution	720 x 576 CIF 720 x 480 CIF 720 x 288 CIF 720 x 240 CIF 352 x 288 CIF 352 x 240 CIF 160 x 144 QCIF 160 x 112 QCIF
File Formats	MPEG-2
White Balance Modes	Auto Trace White Balance (ATW) Auto White Balance (AWB) Manual Indoor Outdoor
Illumination	0.3 Lux - Color @ F1.4 (30 IRE) 0.0050 Lux - Black & White @ F1.4 (30 IRE)
Color Support	Color Black & White
Lens
Lens Type	Motorized zoom lens Focal Length: 4.1 - 73.8 mm
Aperture Range	f/1.4 to 3.0
Shutter Speed	1 to 1/10000 Second(s) CCD Shutter
Optical Zoom	18x
Digital Zoom	12x
Focus Mode	Automatic
Network & Communication
Connectivity Technology	Cable
Protocols	FTP TCP/IP HTTP
Storage
Internal Memory	32 MB
Interfaces/Ports
Interfaces/Ports	1 x RJ-45 10/100Base-TX 1 x D-Sub (DB-9) RS-232 1 x Terminal Block (Screw) RS-485 1 x Input/Output 1 x BNC Video-out 1 x 3.5mm Microphone 1 x DC Power Input
Power Description
Input Voltage	9 V DC Power Supply
Environmental Conditions
Temperature	5 °C (41 °F) to 50 °C (122 °F) Operating
Humidity	20 to 80% Relative Humidity Operating
Physical Characteristics
Dimensions	3.15" Height x 2.95" Width x 6.73" Depth
Shipping Dimensions	5.5" Height x 10" Width x 11.5" Depth
Weight	1.65 lb - Camera only
Shipping Weight	3.75 lb
Miscellaneous
Package Contents	230 MPEG-2 Network Camera Power supply Mounting bracket Connector kit User manual One encoding and three decoding MPEG-2 licenses
Additional Information	Support for selected range of Pan/Tilt heads
System Requirement	RAM: 256MB VGA card: AGP-card with 32/64MB memory and support for DirectDraw Sound card: PCI-based CPU: Pentium III 1GHz or higher AMD Athlon OS: Windows 2000 Windows XP Software: Internet Explorer 5.5 or higher DirectX 9 or higher
Compatibility	PAL NTSC
Certifications & Standards	EMC: FCC Part 15 subpart B VCCI C-tick AS/NZS 3548 CE Compliant according to: EN55022/1998 Class B EN55024/1998 EN61000-3-2 EN61000-3-3 EN61000-6-2 Safety: EN60950 CSA
Security	User level password protection for restricted camera access.
Platform Support	PC
Warranty
Standard Warranty	1 Year(s) Limited
