MODEL- API-311            VENDOR- ADS TECHNOLOGIES

FEATURES- PYRO PCI 64

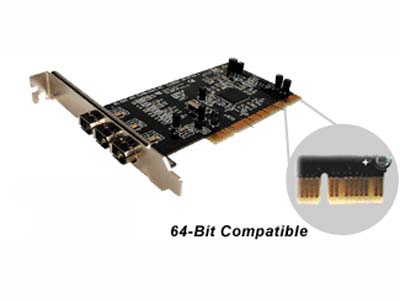

       PYRO PYRO PCI 64 is one of the few Avid-Approved DV in/out PCI cards
        for your computer. The OHCI-compliant card and cable work
        flawlessly with Avid XpressDV. It features the latest in chip
        technology from Texas Instruments and supports 64-bit PCI slots.
* Avid Approved for XpressDV 3.+
* 64-bit PCI compatible
* Capture and Edit Digital Video
* OHCI-Compliant
* Three external 1394FireWire ports
* Transfer data at 400 Mb/Sec.
* Connect to Hard Drives, Printers, Scanners, Cameras and more.

  -- SPECIFICATIONs --------------------------------------
INTERFACE - 64-bit PCI
CONNECTORs- (6) External IEEE-1394a/FireWire ports (6-pin)
CHIPSET   - Texas Instruments
BUS SPEED - 100, 200, 400 Mb/sec.
IRQ       - An IRQ is required. IRQ can be shared if motherboard provides
             this capability through PCI steering.
# DEVICES - Connect up to 63 1394 devices to PYRO. Connect to Digital
             camcorders, 1394 storage devices (hard drives, CD-ROM, CD-RW),
             scanners, speakers, etc.
MOTION VIDEO CAPTURE-
            NTSC: Type -1 DV video in 720 x 480 resolution in 24-bit color
            PAL : Type -1 DV video in 720 x 576 resolution in 24-bit color
       Data Rate: Video is captured at 3.9 MB/second
MOTION VIDEO FRAME RATE-
            NTSC: 29.97 frames per second
            PAL : 25 frames per second
STILL IMAGE CAPTURE-
            NTSC: 720 x 480 resolution in 24-bit color
            PAL : 720 x 576 resolution in 24-bit color
VIDEO FILE SPECs   -
            Data Rate      : Video is captured at 3.9 MB/second
            File Size Limit: 4 GB (about 20 minutes of video)
HARD DRIVE RECOMMENDATION-
            Most all Ultra DMA IDE drives that can support sustained
             transfer rates in excess of 5MB/sec.
SOFTWARE- Ulead MediaStudio Pro Director's Cut
          Ulead DVD Workshop
          Ulead DVD PictureShow
          Neptune MediaShare Video Albums
REQUIRES- PC: Win98 SE, Windows ME, Win2000, Win XP
              Pentium II 266, AMD K6 or equal
              Available 64 bit PCI slot
         MAC: Mac OS 9.x. OS X
              Beige Power Macintosh G3/266 or later
              Available 64 bit PCI slot
SIZE - 5.0"L x 3.2"H
