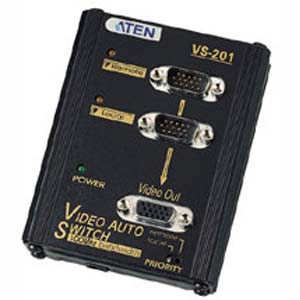

MODEL- VS201              VENDOR- IO GEAR/ATEN

FEATURES- 2 to 1 Video Switch
       The Video Auto Switch, VS-201, is an automatic video switch ideal
        for monitors using analog signals. The VS-201 boosts signals for
        long distance transmission up to 210 feet. A slide switch sets the
        priority of incoming video signals for display and the VS-201
        automatically selects the proper input signal to its output port.
        Both features make the VS-201 an excellent choice for educational
        environments.
* Transmission distance: up to 65m (210 ft.)
* Supports VGA, SVGA and Multisync Monitors
* Automatic Incoming Signal Selection
* Daisy Chain with ATEN Video Splitters

  -- SPECIFICATIONs ---------------------------------------
CONNECTORs     - Input : (2) 15-pin HDB VGA ports (male)
                 Output: (1) 15-pin HDB VGA port (female)
INDICATORS     - LEDs for Power, Local, Remote
VGA BANDWIDTH  - 100 Mhz
VGA RESOLUTION - 1024 x 768 @ 85 Hz
SIGNAL TYPE    - VGA/SVGA/MultiSync
SOURCE PRIORITY- Local, Remote
CABLE DISTANCE - 65 m (210 ft.) Max.
HOUSING        - Metal
POWER- AC 9 volt, 130mA (max.)
SIZE - 3.92"w x 0.96"h x 4.16"d             WT.- 63 oz.
     www.aten-usa.com
